Part Number: MN673794
Description: This IC is used to process a variety of items including the following ones: NTSC/PAL signal (Y/C and composite video) I...
- Table of contents:
MN673794
-
Suppliers
DataSheet
General Description
MN673794 General Description
This IC is used to process a variety of items including the following ones: NTSC/PAL signal (Y/C and composite video) I/O, 3D Y/C separation, TBC, DD conversion, frame sync, sync/clock generation, Rec 656 I/O.
MN673794 Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| A1 External supply voltage | VDD | -0.3 to 4.6 | V |
| A2 Internal supply voltage | VDDI | -0.3 to 3.6 | V |
| A3 Input pin voltage | VI | -0.3 to VDD+0.3 (Upper limit: 4.6) | V |
| A4 Output pin voltage | VO | -0.3 to VDD+0.3 (Upper limit: 4.6) | V |
| A5 Output current (TYPE-HL2) | IO | ±6 | mA |
| A6 Output current (TYPE-HL4) | IO | ±12 | mA |
| A7 Output current (TYPE-HL8) | IO | ±24 | mA |
| A8 Power dissipation | PD | 1920 | mW |
| A9 Operating ambient temperature | TOPR | -20 to +80 | |
| A10 Storage temperature | TSTG | -40 to 125 |
MN673794 Features
▪ Analog input block Composite video/Component Y input (10 bits at 27.0 MHz) Component C input (10 bits at 27.0 MHz)
▪ Analog control block AGC (Auto Gain Control), clamp control, ACC (Auto Color Control)
▪ Digital I/O block Digital video I/O (ITU-R Rec 656: Y/Cr/Cb multiple, 8 bits at 27 MHz) Digital video input clock must be synchronized with the system clock of 27 MHz.
▪ Signal processing block 3D Y/C separation (image movement adaptive processing: NTSC), 2D Y/C separation (PAL) TBC (Time Base Corrector) processing (velocity error correction/jitter correction) Frame sync processing (See Note.)
NR processing (Y/C recursive NR) Y/C separation is performed only in two dimensions (due to memory sharing) when the NR function is in use.
▪ Copyright VBLK detection Macrovision (AGC pulse and color stripe) detection VBID detection Closed caption detection WSS detection

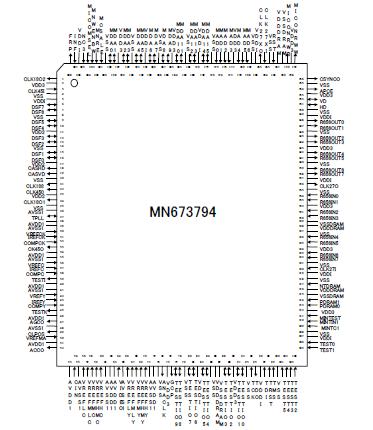

MN673794 Connection Diagram
MN673794
PDF/DataSheet Download
- Datasheet: MN673794
- File Size: 686581 KB
- Manufacturer: PANASONIC [Panasonic Semiconductor]
- Click here to Download
