The MN6761S is an external synchronization control LSI for color video cameras.
When used in combination with a synchronizing signal generator (MN67601NS or MN67602PS), it provides external synchronization control for NTSC and PAL video systems.
MN6761S Features
•Synchronization of both the video camera and the VCR
•External synchronization inputs: Composite synchronizing signal and burst subcarrier
•External synchronization techniques
• Horizontal synchronization: phase-locked loop
• Vertical synchronization: reset technique
• Subcarrier synchronization: phase-locked loop
•Support for both NTSC and PAL systems
•Built-in feature for automatically switching between external and internal synchronization
•Built-in horizontal phase adjustment circuit
•External synchronization inputs: Composite synchronizing signal and burst subcarrier
•External synchronization techniques
• Horizontal synchronization: phase-locked loop
• Vertical synchronization: reset technique
• Subcarrier synchronization: phase-locked loop
•Support for both NTSC and PAL systems
•Built-in feature for automatically switching between external and internal synchronization
•Built-in horizontal phase adjustment circuit
MN6761S Typical Application
Color video cameras

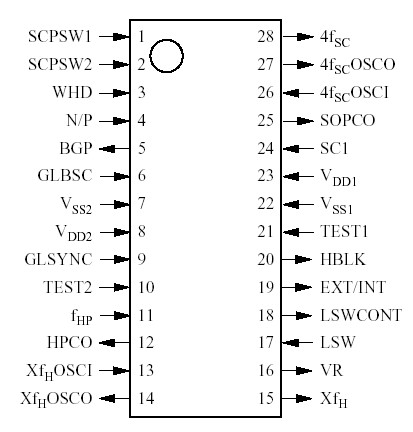

MN6761S Connection Diagram
