Part Number: MOCD223



MFG: FSC

Package Cooled: sop



Description: The MOCD223 device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silico...


Urgent Purchase

MOCD223 General Description


The MOCD223 device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor darlington detectors, in a surface mountable, small outline, plastic package. It is ideally suited for high density applications that require low input current and eliminates the need for throughtheboard mounting.

MOCD223 Maximum Ratings

Rating Symbol Value Unit
INPUT LED
Forward Current - Continuous IF 60 mA
Forward Current - Peak (PW = 100 s, 120 pps) IF (pk) 1.0 A
Reverse Voltage VR 6.0 V
LED Power Dissipation @ TA = 25°C
Derate above 25°C		 PD

 90
0.8 		mW
mW/°C
OUTPUT TRANSISTOR
Collector-Emitter Voltage VCEO 30 V
Collector-Base Voltage VCBO 70 V
Emitter-Collector Voltage VECO 7.0 V
Collector Current-Continuous IC 150 mA
Detector Power Dissipation @ TA = 25°C
Derate above 25°C 		PD
 150
1.76 		mW
mW/°C
TOTAL DEVICE
Input-Output Isolation Voltage (1,2,3) (f = 60 Hz, 1 min. Duration) VISO 2500 Vac(rms)
Total Device Power Dissipation @ TA = 25°C
Derate above 25°C 		PD
250
2.94		 mW
mW/°C
Ambient Operating Temperature Range TA -55 to +100 °C
Storage Temperature Range Tstg -55 to +150 °C
Lead Soldering Temperature (1/16" from case, 10 sec. duration) - 260 °C

MOCD223 Features

• Dual Channel Coupler
• Convenient Plastic SOIC8 Surface Mountable Package Style
• High Output Current (IC) (500% min) @ 1 mA Input Current
• Minimum V(BR)CEO of 30 Volts Guaranteed
• Standard SOIC8 Footprint, with 0.050, Lead Spacing
• Shipped in Tape and Reel, which conforms to EIA Standard RS481A
• Compatible with Dual Wave, Vapor Phase and IR Reflow Soldering
• High InputOutput Isolation of 3000 Vac (rms) Guaranteed
• Meets U.L. Regulatory Requirements, File #E54915

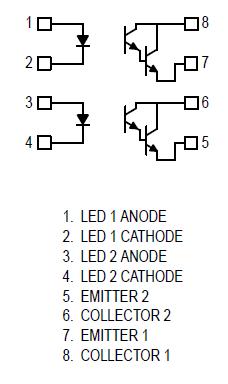

MOCD223 Connection Diagram

MOCD223 Connection Diagram

MOCD223 datasheet

MOCD223
PDF/DataSheet Download
