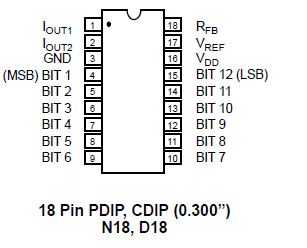

MP7541B

VDD to GND . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . . 0 to +17 V
Digital Input Voltage to GND . . . . . .  . GND 0.5 to VDD +0.5 V
IOUT1, IOUT2 to GND . . . . . . . . . .  . .. GND 0.5 to VDD +0.5 V
VREF to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . +25 V
VRFB to GND . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . +25 V
Storage Temperature . . . . . . . . . . . . . . . . . 65°C to +150°C
Lead Temperature (Soldering, 10 seconds) . . . . . . . . . +300°C
Package Power Dissipation Rating to 75°C
CDIP, PDIP, SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 850mW
Derates above 75°C . . . . . . . . . . . . . . . . . . . . . . . . . 11mW/°C

NOTES:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 20mA for less than 100ms.
