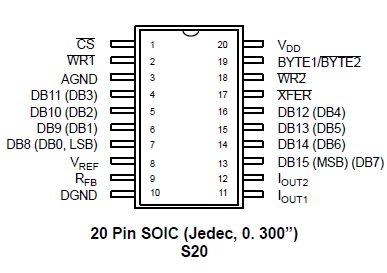

MP7636A

Voltage at Any Digital Input . . . . . . . GND 0.5 to V_DD +0.5 V
Voltage at VREF Input . . . . . . . . . . . . . . . . . . . . . . . . . . +25 V
DC Voltage Applied to I_OUT1 or I_OUT2 GND 0.5 V to +17 V
Supply Voltage (V_DD) . . . . . . . . . . . . . . . . . . .  . . . . . . +17 V_DC
AGND to DGND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +1 V
(Functionality Guaranteed +0.5 V)
Storage Temperature Range . . . . . . . . . . . .  . .65 to 150
Package Power Dissipation Rating to 75
SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 900mW
Derates above 75 . . . . . . . . . . . . . . . . . . . . . . . . . . 12mW/

NOTES:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100ms. 3 GND refers to AGND and DGND.
