Part Number: MP7680
Description: The MP7680 and the integrate four 12-bit four-quadrantmultiplying DACs with independent reference inpu...
- Table of contents:
MP7680
-
Suppliers
DataSheet
General Description
MP7680 General Description
The MP7680 and the integrate four 12-bit four-quadrantmultiplying DACs with independent reference inputs and excellent matching characteristics. The MP7680 grades offer 1/2, 1 and 2 LSB of relative accuracy. The superior offers a low 2 LSB of gain error.
Each DAC has double-buffering (an 8 and 4-bit latch and a 12-bit latch) between the data bus (DB11 - DB0) and the DAC. The internal 4-bit mux allows the use of 8 or 16-bit buses. The flexible latch control logic allows to update one or more DACs simultaneously.
MP7680 Maximum Ratings
| VDD to AGND VDD to DGND Digital Input Voltage to DGND Any IOUT1, IOUT2 to AGND Any VREF to AGND AGND to DGND (Functionality Guaranteed ±0.5 V) |
-0.5 to +7 V -0.5 to +7 V GND -0.5 to VDD +0.5 V GND -0.5 to VDD +0.5 V ±25 V ±1 V |
| Any VRFB to AGND Storage Temperature Lead Temperature (Soldering, 10 seconds) Package Power Dissipation Rating to 75°C CDIP, PDIP, PQFP Derates above 75°C |
±25 V -65°C to +150°C +300°C 800mW 11mW/°C |
Notes:
1 Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation at or above this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability .
2 Any input pin which can see a value outside the absolute maximum ratings should be protected by Schottky diode clamps (HP5082-2835) from input pin to the supplies. All inputs have protection diodes which will protect the device from short transients outside the supplies of less than 100mA for less than 100 ms.
MP7680 Features
· Exar Pioneered Segmented DAC Approach
· Four Double-Buffered 12-bit DACs on a Single Chip
· Independent Reference Inputs
· Lowest Gain Error in a Multiple DAC Chip
· Guaranteed Monotonic
· TTL/5 V CMOS Compatible Inputs
· Industry Standard Digital Interface
· Four Quadrant Multiplication
· Latch-Up Free
· Four Double-Buffered 12-bit DACs on a Single Chip
· Independent Reference Inputs
· Lowest Gain Error in a Multiple DAC Chip
· Guaranteed Monotonic
· TTL/5 V CMOS Compatible Inputs
· Industry Standard Digital Interface
· Four Quadrant Multiplication
· Latch-Up Free
MP7680 Typical Application
· Function Generators
· Automatic Test Equipment
· Precision Process Controls
· Recording Studio Control Boards
· Automatic Test Equipment
· Precision Process Controls
· Recording Studio Control Boards

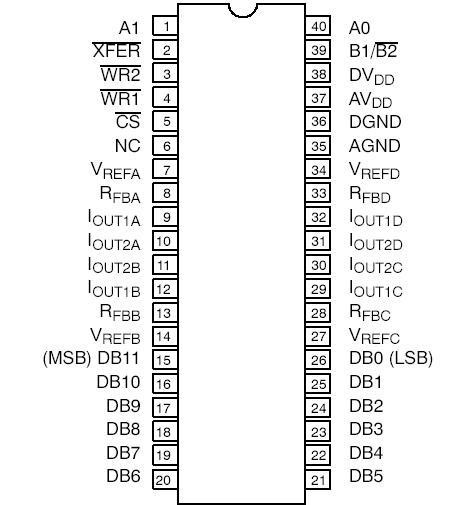

MP7680 Connection Diagram
MP7680
PDF/DataSheet Download
- Datasheet: MP7680
- File Size: 315225 KB
- Manufacturer: EXAR [Exar Corporation]
- Click here to Download
