MR27V3255D

Features:

• 1,048,576 double word x 32bit / 2,097,152 word x 16bit electrically switchable configuration
• Single +3.3V power supply
• Access time 80ns Page mode access time 25ns
• Input / Output TTL compatible
• Three-state output
• Packages
70-pin plastic SSOP (SSOP70-P-500-0.80-K) (Product name : MR27V3255DMB)
70-pin plastic TSOP (TSOP II 70-P-400-0.65-K) (Product name : MR27V3255DTA)

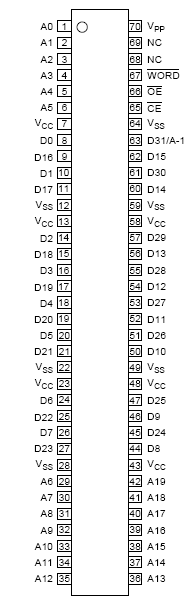

Pinout




Specifications

Parameter	Symbol	Condition	Value	Unit
Operating temperature under bias	Ta	-	0 to 70	°C
Storage temperature	Tstg		55 to 125	°C
Input voltage	VI	relative to VSS	0.5 to VCC+0.5	V
Output voltage	VO		0.5 to VCC+0.5	V
Power supply voltage	VCC		0.5 to 5	V
Program power supply voltage	VPP		0.5 to 11.5	V
Power dissipation per package	PD	-	1.0	W

Description

The MR27V3255D is a 32Mbit electrically Programmable Read-Only Memory with page mode. Its configuration can be electrically switched between 1,048,576 double word x 32bit and 2,097,152 word x 16bit. The MR27V3255D operates on a single +3.3V power supply and is TTL compatible. The MR27V3255D provides Page mode which can greatly reduce the read access time. Since the MR27V3255D operates asynchronously , external clocks are not required , making this device easyto- use. The MR27V3255D is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 70-pin SSOP or 70-pin TSOP packages.
