Purchase MR27V3266D, In-stock MR27V3266D From SeekIC.
Part Number: MR27V3266D
Description: The MR27V3266D is a 32Mbit One Time Programmable Synchronous Read Only Memory whose configuration can ...
- Table of contents:
MR27V3266D
-
Suppliers
DataSheet
General Description
MR27V3266D General Description
The MR27V3266D is a 32Mbit One Time Programmable Synchronous Read Only Memory whose configuration can be electrically switched between 2,097,152 x16bit(word mode) and 1,048,576 x32bit(double word mode) by the state of the /WORD pin. The MR27V3266D supports high speed synchronous read operations using a single 3.3V power supply.
MR27V3266D Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Voltage on VCC Relative to VSS | VCC,VCCQ | -0.5 | 5 | V |
| Voltage on VCC Relative to VSS | VIN, VOUT, DC | -0.5 | VCC + 0.5 | V |
| Voltage on VCC Relative to VSS | VPP | -0.5 | 10 | V |
| Voltage on VCC Relative to VSS | Ta | 0 | 70 | degree C |
| Voltage on VCC Relative to VSS | Tstg | -55 | 125 | degree C |
| Voltage on VCC Relative to VSS | IOS | - | 50 | mA |
| Power Dissipation | PD | - | 1 | W |
MR27V3266D Features
- 3.3V power supply
- LVTTL compatible with multiplexed address
- Dual, electrically switchable configurations
2M x16(word mode) / 1M x32(double word mode)
- All inputs are sampled at the rising edge of the system clock
- High speed read operation
66MHz : CAS Latency=5
tRCDmin=2
Burst Length (4, 8)
Data scramble (sequential, interleave)
50MHz : CAS Latency=4, 5
tRCDmin=1
Burst Length (4, 8)
Data scramble (sequential, interleave)
- DQM for data out masking
- No Precharge operation is required. No Refresh operation is required.
- No power on sequence is required.
Mode register is automatically initialized to the default state after power on.
"Row Active" command to read data is applicable as the first command just after power on.
- Single Bank operation
- Package : TSOP II 86-P-400-0.50-K
- LVTTL compatible with multiplexed address
- Dual, electrically switchable configurations
2M x16(word mode) / 1M x32(double word mode)
- All inputs are sampled at the rising edge of the system clock
- High speed read operation
66MHz : CAS Latency=5
tRCDmin=2
Burst Length (4, 8)
Data scramble (sequential, interleave)
50MHz : CAS Latency=4, 5
tRCDmin=1
Burst Length (4, 8)
Data scramble (sequential, interleave)
- DQM for data out masking
- No Precharge operation is required. No Refresh operation is required.
- No power on sequence is required.
Mode register is automatically initialized to the default state after power on.
"Row Active" command to read data is applicable as the first command just after power on.
- Single Bank operation
- Package : TSOP II 86-P-400-0.50-K

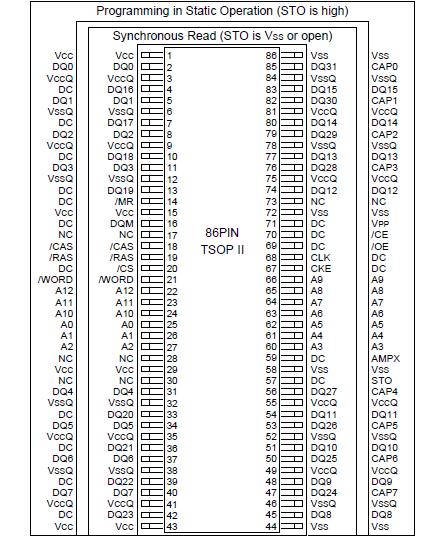

MR27V3266D Connection Diagram
MR27V3266D
