Part Number: MR27V452D
Description: The MR27V452D is a 4Mbit electrically Programmable Read-Only Memory with page mode. Its configuration ...
- Table of contents:
MR27V452D
-
Suppliers
DataSheet
General Description
MR27V452D General Description
The MR27V452D is a 4Mbit electrically Programmable Read-Only Memory with page mode. Its configuration can be electrically switched between 262,144 word x 16bit and 524,288 word x 8bit. The MR27V452D operates on a single +3.3V power supply and is TTL compatible. The MR27V452D provides Page mode which can greatly reduce the read access time. Since the MR27V452D operates asynchronously , external clocks are not required , making this device easy-to-use. The MR27V452D is suitable as large-capacity fixed memory for microcomputers and data terminals. It is manufactured using a CMOS double silicon gate technology and is offered in 40-pin DIP , 40-pin SOP or 44-pin TSOP packages.
MR27V452D Maximum Ratings
| Parameter | Symbol | Condition | Value | Unit |
| Operating temperature under bias | Topr | - | 0 to 70 | |
| Storage temperature | Tstg | -55 to 125 | ||
| Input voltage | VI | relative to VSS | -0.5 to VCC + 0.5 | V |
| Output voltage | VO | -0.5 to VCC + 0.5 | V | |
| Power supply voltage | VCC | -0.5 to 5 | V | |
| Program power supply voltage | VPP | -0.5 to 11.5 | V | |
| Power dissipation per package | PD | 1.0 | W |
MR27V452D Features
• 262,144 word x 16bit / 524,288 word x 8bit electrically switchable configuration
• Single +3.3V power supply
• Access time 100ns
Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Packages
40-pin plastic DIP (DIP40-P-600-2.54) (Product name : MR27V452DRP)
40-pin plastic SOP (SOP40-P-525-1.27-K) (Product name : MR27V452DMP)
44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) (Product name : MR27V452DTP)
• Single +3.3V power supply
• Access time 100ns
Page mode access time 30ns
• Input / Output TTL compatible
• Three-state output
• Packages
40-pin plastic DIP (DIP40-P-600-2.54) (Product name : MR27V452DRP)
40-pin plastic SOP (SOP40-P-525-1.27-K) (Product name : MR27V452DMP)
44-pin plastic TSOP (TSOP II 44-P-400-0.80-K) (Product name : MR27V452DTP)

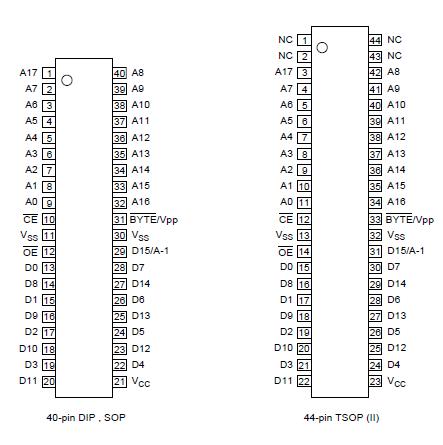

MR27V452D Connection Diagram
MR27V452D
PDF/DataSheet Download
- Datasheet: MR27V452D
- File Size: 84977 KB
- Manufacturer: OKI [OKI electronic componets]
- Click here to Download
