MR27V6466F

• 3.3 V power supply
• LVTTL compatible with multiplexed address
• Dual electrically switchable configuration
   4M x 16 (word mode) / 2M x 32 (double word mode)
• All inputs are sampled at the rising edge of the system clock.
• High speed read operation
   100 MHz : CAS Latency = 5, 6 tRCD min: 2 clock cycles
   66 MHz : CAS Latency = 5, 6 tRCD min: 2 clock cycles
   50 MHz : CAS Latency = 4, 5, 6 tRCD min: 1 clock cycles
   Burst length (4, 8)
   Data scramble (sequential, interleave)
• DQM for data out masking
• No Precharge operation is required. No Refresh operation is required.
• No power on sequence is required.
   Mode register is automatically initialized to the default state after power on.
   "Row Active" or "Mode Register Set" command is applicable as the first command just after power on.
• Single Bank operation

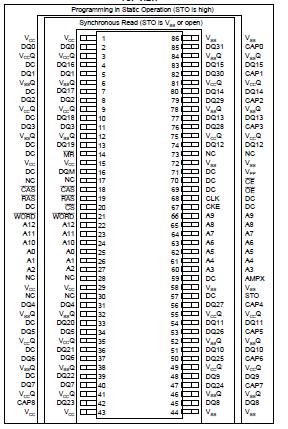

• Package: TSOP(2)86-P-400-0.50-K (Product Name : MR27V6466FTA)

The MR27V6466F is a 64 Mbit One Time Programmable Synchronous Read Only Memory whose configuration can be electrically switched between 4,194,304 x 16 bit (word mode) and 2,097,152 x 32 bit (double word mode) by the state of the WORD pin. The MR27V6466F supports high speed synchronous read operation using a single 3.3 V power supply.
