Product Details

Description



Features:

• 4,194,304-word ×4-bit configuration
• Single  5 V power supply, ±10% tolerance
• Input : TTL compatible, low input capacitance
• Output : TTL compatible, 3-state
• Refresh : 4096 cycles/64 ms
• Fast page mode, read modify write capability
• CAS before RAS refresh, hidden refresh, RAS-only refresh capability
• Multi-bit test mode capability
• Package options:
            26/24-pin 300 mil plastic SOJ (SOJ26/24-P-300-1.27) (Product : MSM5116400B-xxSJ)
            26/24-pin 300 mil plastic TSOP (TSOPII26/24-P-300-1.27-K) (Product : MSM5116400B-xxTS-K)
                                                             (TSOPII26/24-P-300-1.27-L) (Product : MSM5116400B-xxTS-L)
                                                                                                                        xx indicates speed rank.

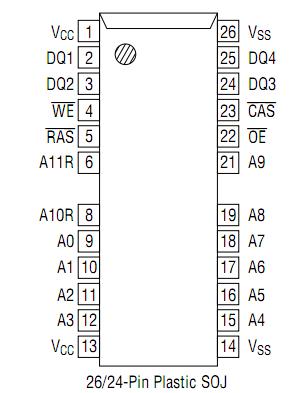

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Voltage on Any Pin Relative to VSS
VIN, VOUT
0.5 to VCC + 0.5
V
Voltage on VCC Supply Relative to VSS
VCC
0.5 to 7
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD*
1
W
Operating Temperature
Topr
0 to 70
Storage Temperature
Tstg
55 to 150



Description

The MSM5116400B is a 4,194,304-word × 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM5116400B achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM5116400B is available in a 26/24-pin plastic SOJ or 26/24-pin plastic TSOP.
