General Description
MSM51V16160F General Description
The MSM51V16160F is a 1,048,576-word * 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V16160F achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V16160F is available in a 50/44-pin plastic TSOP.
MSM51V16160F Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
0.5 to VCC + 0.5 |
V |
| Voltage on VCC Supply Relative to VSS |
VCC |
0.5 to 7 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD* |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
|
| Storage Temperature |
Tstg |
55 to 150 |
MSM51V16160F Features
· 1,048,576-word × 16-bit configuration
· Single 3.3V power supply, ±0.3V tolerance
· Input : LVTTL compatible, low input capacitance
· Output : LVTTL compatible, 3-state
· Refresh : 4096 cycles/64ms
· Fast page mode, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· Packages
50/44-pin 400mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM51V16160F-xxTS-K)
xx indicates speed rank.

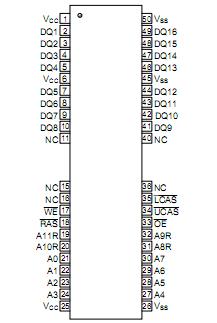

MSM51V16160F Connection Diagram
MSM51V16160F
