Part Number: MSM51V16165D
MFG: 11000
Package Cooled: OKI
Description: The MSM51V16165D/DSL is a 1,048,576-word × 16-bit dynamic RAM fabricated in ...
- Table of contents:
MSM51V16165D
-
Suppliers
DataSheet
General Description
MSM51V16165D General Description
The MSM51V16165D/DSL is a 1,048,576-word × 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V16165D/DSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V16165D/DSL is available in a 42-pin plastic SOJ or 50/44-pin plastic TSOP. The MSM51V16165DSL (the self-refresh version) is specially designed for lower-power applications.
MSM51V16165D Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VT |
0.5 to 4.6 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD* |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
|
| Storage Temperature |
Tstg |
55 to 150 |
MSM51V16165D Features
· 1,048,576-word × 16-bit configuration
· Single 3.3 V power supply, ±0.3 V tolerance
· Input : LVTTL compatible, low input capacitance
· Output : LVTTL compatible, 3-state
· Refresh : 4096 cycles/64 ms, 4096 cycles/128 ms (SL version)
· Fast page mode with EDO, read modify write capability
· CAS before RAS refresh, hidden refresh, RAS-only refresh capability
· CAS before RAS self-refresh capability (SL version)
· Package options:
42-pin 400 mil plastic SOJ (SOJ42-P-400-1.27) (Product : MSM51V16165D/DSL-xxJS)
50/44-pin 400 mil plastic TSOP (TSOPII50/44-P-400-0.80-K) (Product : MSM51V16165D/DSL-xxTS-K)
xx indicates speed rank.

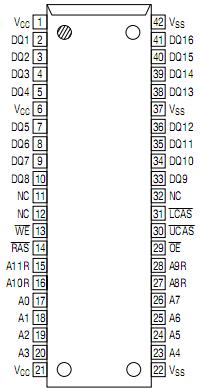

MSM51V16165D Connection Diagram
MSM51V16165D
