MFG:11000 Package Cooled:OKI
MFG: 11000
Package Cooled: OKI
Description: The MSM51V17405D/DSL is a 4,194,304-word ´ 4-bit dynamic RAM fabricated in Oki's silicon-gate CM...

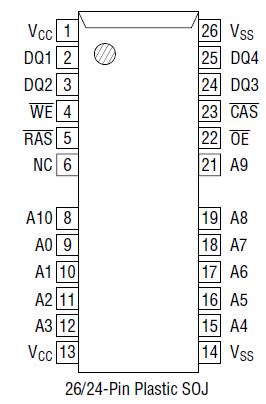

The MSM51V17405D/DSL is a 4,194,304-word ´ 4-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V17405D/DSL achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/ double-layer metal CMOS process. The MSM51V17405D/DSL is available in a 26/24-pin plastic SOJ or 26/24-pin plastic TSOP. The MSM51V17405DSL (the self-refresh version) is specially designed for lower-power applications.
| Parameter | Symbol | Rating | Unit |
| Voltage on Any Pin Relative to VSS | VT | 0.5 to 4.6 | V |
| Short Circuit Output Current | IOS | 50 | mA |
| Power Dissipation | PD* | 1 | W |
| Operating Temperature | Topr | 0 to 70 | |
| Storage Temperature | Tstg | 55 to 150 |
MSM51V17405D
PDF/DataSheet Download
