Part Number: MSM51V4265E
Description: The MSM51V4265E is a 262,144-word * 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technolog...
- Table of contents:
MSM51V4265E
-
Suppliers
DataSheet
General Description
MSM51V4265E General Description
The MSM51V4265E is a 262,144-word * 16-bit dynamic RAM fabricated in Oki's silicon-gate CMOS technology. The MSM51V4265E achieves high integration, high-speed operation, and low-power consumption because Oki manufactures the device in a quadruple-layer polysilicon/double-layer metal CMOS process. The MSM51V4265E is available in a 40-pin plastic SOJ or 44/40-pin plastic TSOP.
MSM51V4265E Maximum Ratings
| Parameter | Symbol | Rating | Unit |
| Voltage on Any Pin Relative to VSS | VT | 1.0 to 4.6 | V |
| Short Circuit Output Current | IOS | 50 | mA |
| Power Dissipation | PD* | 1 | W |
| Operating Temperature | Topr | 0 to 70 | °C |
| Storage Temperature | Tstg | 55 to 150 | °C |
MSM51V4265E Features
∙ 262,144-word × 16-bit configuration
∙ Single 3.3V power supply, ±0.3V tolerance
∙ Input : LVTTL compatible, low input capacitance
∙ Output : LVTTL compatible, 3-state
∙ Refresh : 512 cycles/8ms
∙ Fast page mode with EDO, read modify write capability
∙ CAS before RAS refresh, hidden refresh, RAS-only refresh capability
∙ Packages
40-pin 400mil plastic SOJ (SOJ40-P-400-1.27) (Product : MSM51V4265E-xxJS)
44/40-pin 400mil plastic TSOP (TSOPII44/40-P-400-0.80-K) (Product : MSM51V4265E-xxTS-K)
xx indicates speed rank.
∙ Single 3.3V power supply, ±0.3V tolerance
∙ Input : LVTTL compatible, low input capacitance
∙ Output : LVTTL compatible, 3-state
∙ Refresh : 512 cycles/8ms
∙ Fast page mode with EDO, read modify write capability
∙ CAS before RAS refresh, hidden refresh, RAS-only refresh capability
∙ Packages
40-pin 400mil plastic SOJ (SOJ40-P-400-1.27) (Product : MSM51V4265E-xxJS)
44/40-pin 400mil plastic TSOP (TSOPII44/40-P-400-0.80-K) (Product : MSM51V4265E-xxTS-K)
xx indicates speed rank.

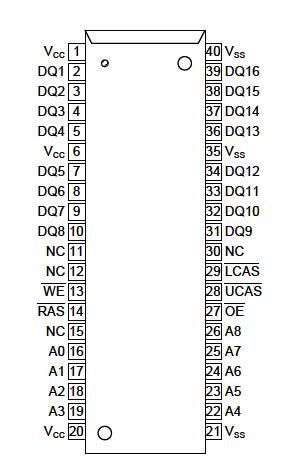

MSM51V4265E Connection Diagram
MSM51V4265E
