Part Number: MSM5267B-15
Description: The MSM5267B15 is a CMOS multi-digit display driver and consisting of a 34-bit shift register,N a 33-b...
- Table of contents:
MSM5267B-15
-
Suppliers
DataSheet
General Description
MSM5267B-15 General Description
The MSM5267B15 is a CMOS multi-digit display driver and consisting of a 34-bit shift register,N a 33-bit latch, and a 33-bit VF tube driver.
MSM5267B-15 Maximum Ratings
| Parameter | Symbol | Condition | Min. | Max. | Unit |
| Supply voltage | VDD | - | 0.3 | 20 | V |
| Input voltage | VI | - | 0.3 | VDD + 0.3 | V |
| Operating Temperature | Ta | - | 40 | 85 | °C |
| Storage temperature | Tst | - | 65 | 150 | °C |
MSM5267B-15 Features
• Complete static operation to ensure stability against noise.
• 3 or 4-signal line connection with microcomputers.
• Direct driver of VF tubes (8 outputs of high-current drive, 25 outputs of low-current drive)
• Capability of self-load mode.
• Low power consumption.
• Signal power supply and operating voltage range of 8V to 18V.
• 40-pin Plastic DIP (DIP40-P-600)
• 44-pin "V" Plastic QFP (QFP44-P-910-VK)
• 44-pin Plastic QFJ (PLCC) (QFJ44-P-S650)
• 3 or 4-signal line connection with microcomputers.
• Direct driver of VF tubes (8 outputs of high-current drive, 25 outputs of low-current drive)
• Capability of self-load mode.
• Low power consumption.
• Signal power supply and operating voltage range of 8V to 18V.
• 40-pin Plastic DIP (DIP40-P-600)
• 44-pin "V" Plastic QFP (QFP44-P-910-VK)
• 44-pin Plastic QFJ (PLCC) (QFJ44-P-S650)

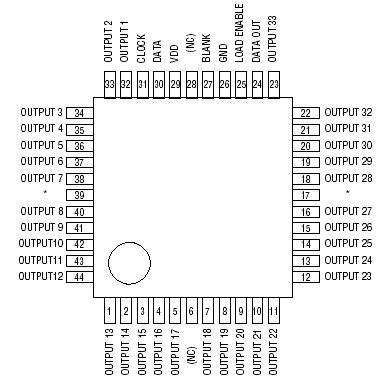

MSM5267B-15 Connection Diagram
MSM5267B-15
PDF/DataSheet Download
- Datasheet: MSM5267B-15
- File Size: 99601 KB
- Manufacturer: OKI
- Click here to Download
