Part Number: MSM5432126A
Description: The MSM5432126A is a Graphics DRAM organized in a 131,072-word × 32-bit conf...
- Table of contents:
MSM5432126A
-
Suppliers
DataSheet
General Description
MSM5432126A General Description
The MSM5432126A is a Graphics DRAM organized in a 131,072-word × 32-bit configuration.The technology used to fabricate the MSM5432126A is OKI's CMOS silicon gate process echnology. The device operates with a single 5 V power supply.
MSM5432126A Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VT |
0.5 to 7.0 |
V |
| Short Circuit Output Current |
IOS |
50 |
mA |
| Power Dissipation |
PD |
1 |
W |
| Operating Temperature |
Topr |
0 to 70 |
°C |
| Storage Temperature |
Tstg |
55 to 150 |
°C |
MSM5432126A Features
• 131,072-word ×32-bit organization
• Single 5 V power supply, ±10% tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
• Byte write, Byte read
• RAS only refresh
• CAS before RAS refresh
• Hidden refresh
• Package options:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM5432126A-xxGS-K)
xx indicates speed rank.
• Single 5 V power supply, ±10% tolerance
• Refresh: 512 cycles/8 ms
• Fast Page Mode with Extended Data Out (EDO)
• Byte write, Byte read
• RAS only refresh
• CAS before RAS refresh
• Hidden refresh
• Package options:
64-pin 525 mil plastic SSOP (SSOP64-P-525-0.80-K) (Product : MSM5432126A-xxGS-K)
xx indicates speed rank.

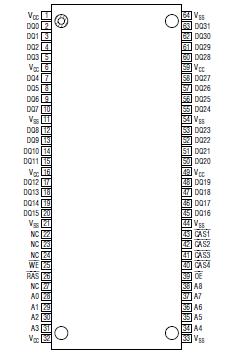

MSM5432126A Connection Diagram
MSM5432126A
