Purchase MSM5547, In-stock MSM5547 From SeekIC.
MFG:60 Package Cooled:OKI
Part Number: MSM5547
MFG: 60
Package Cooled: OKI
Description: MSM5547 is a clock IC featuring a wide power supply range with 4.194304 MHz original oscillation. MSM5...
- Table of contents:
MSM5547
-
Suppliers
DataSheet
General Description
MSM5547 General Description
MSM5547 is a clock IC featuring a wide power supply range with 4.194304 MHz original oscillation. MSM5547 is a 12 hour cycle AM/PM clock for a static fluorescent character display tube. Time correction is in hour, minute and 30 minute adjustments. Hour and minute are corrected by a 2 Hz fast-forward function. MSM 5547 also has a contrast adjustment function for the fluorescent character display tube, which can set four levels of contrast, including 100% duty.
MSM5547 Maximum Ratings
|
Parameter |
Symbol |
Condition |
Rating |
Unit |
| Power supply voltage |
VDD-VSS |
Ta = 25°C |
0.3 to 18 |
V |
| Input voltage |
VI |
VSS 0.3 VI VDD + 0.3 |
V | |
| input current |
II |
±10 |
mA | |
| P channel open drain Output pin withstanding voltage |
VO |
VDD 26 |
V | |
| P channel open drain output current |
IO |
10 |
mA | |
| Power dissipation |
PD |
200 |
mW | |
| Storage temperature range |
TSTG |
- |
55 to +150 |
°C |
MSM5547 Features
• 12 hour clock (AM/PM)
• Applied for static fluorescent character display tube
• Wide power supply range: 4 to 16V
• 4.194304 MHz original oscillation
• 4 levels of contrast can be selected
• Package: 44-pin plastic QFP (QFP44-P-910-L2)
(Product name: MSM 5547GS-L2)
42-pin plastic DIP (DIP42-P-600)
(Product name: MSM 5547RS)
• Applied for static fluorescent character display tube
• Wide power supply range: 4 to 16V
• 4.194304 MHz original oscillation
• 4 levels of contrast can be selected
• Package: 44-pin plastic QFP (QFP44-P-910-L2)
(Product name: MSM 5547GS-L2)
42-pin plastic DIP (DIP42-P-600)
(Product name: MSM 5547RS)

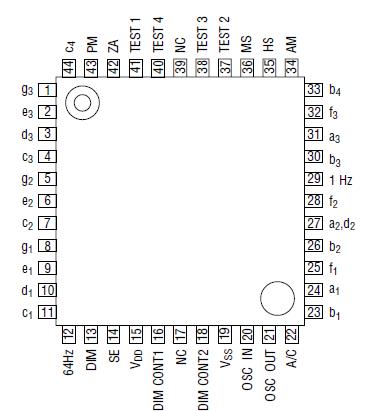

MSM5547 Connection Diagram
MSM5547
PDF/DataSheet Download
- Datasheet: MSM5547
- File Size: 105889 KB
- Manufacturer: OKI
- Click here to Download
