Part Number: MSM56V16800F
Description: The MSM56V16800F is a 2-Bank *1,048,576-word* 8 bit Synchronous dynamic RAM, fabricated in OKI's...
- Table of contents:
MSM56V16800F
-
Suppliers
DataSheet
General Description
MSM56V16800F General Description
The MSM56V16800F is a 2-Bank *1,048,576-word * 8 bit Synchronous dynamic RAM, fabricated in OKI's CMOS silicon-gate process technology. The device operates at 3.3V. The inputs and outputs are LVTTL compatible.
MSM56V16800F Maximum Ratings
|
Parameter |
Symbol |
Rating |
Unit |
| Voltage on Any Pin Relative to VSS |
VIN, VOUT |
-0.5 to VCC +0.5 |
V |
| VCC Supply Voltage |
VCC, VCCQ |
-0.5 to 4.6 |
V |
| Storage Temperature |
Tstg |
-55 to 150 |
°C |
| Power Dissipation |
PD* |
600 |
mW |
| Short Circuit Current |
IOS |
50 |
mA |
| Operating Temperature |
Topr |
0 to 70 |
°C |
*: Ta = 25°C
MSM56V16800F Features
Silicon gate , quadruple polysilicon CMOS , 1-transistor memory cell
2-bank *1,048,576-word *8bit configuration
3.3V power supply ± 0.3V tolerance
Input : LVTTL compatible
Output : LVTTL compatible
Refresh : 4096 cycles/64 ms
Programmable data transfer mode
-CAS Latency (1,2,3)
- Burst Length (1,2,4,8,Full page)
-Data scramble (sequential , interleave)
CBR auto-refresh, Self-refresh capability
Package:
44-pin 400mil plastic TSOP (Type II)(TSOPII44-P-400-0.80-K)(Product : MSM56V16800F-xxTS-K)
xx : indicates speed rank.
2-bank *1,048,576-word *8bit configuration
3.3V power supply ± 0.3V tolerance
Input : LVTTL compatible
Output : LVTTL compatible
Refresh : 4096 cycles/64 ms
Programmable data transfer mode
-CAS Latency (1,2,3)
- Burst Length (1,2,4,8,Full page)
-Data scramble (sequential , interleave)
CBR auto-refresh, Self-refresh capability
Package:
44-pin 400mil plastic TSOP (Type II)(TSOPII44-P-400-0.80-K)(Product : MSM56V16800F-xxTS-K)
xx : indicates speed rank.

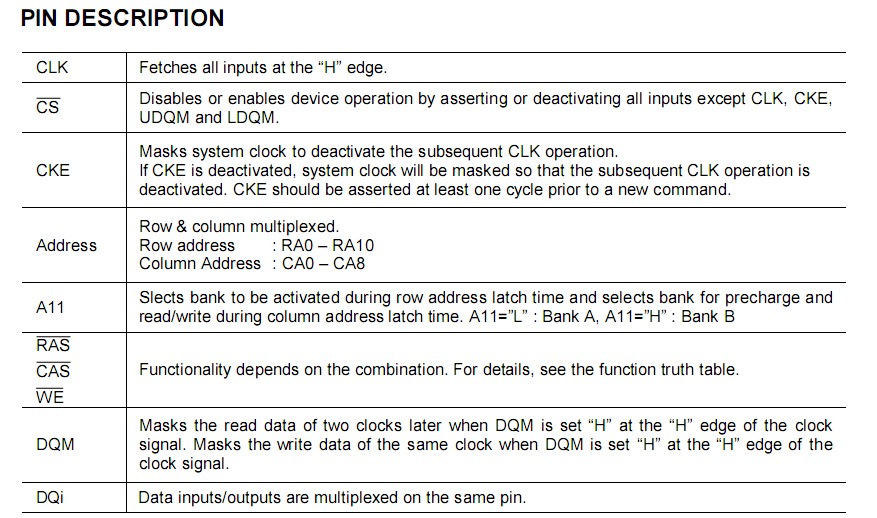

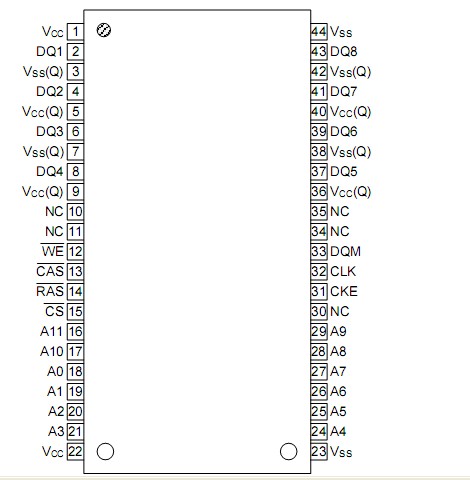

MSM56V16800F Connection Diagram
MSM56V16800F
