MSP430F4260IDL

Operating Temperature Range :
Core : MSP430
Data Bus Width : 16 bit
On-Chip ADC : Yes
Operating Supply Voltage : 1.8 V to 3.6 V
Mounting Style : SMD/SMT
Maximum Clock Frequency : 16 MHz
Data RAM Size : 256 B
Program Memory Size : 24 KB
Processor Series : 4 Series
Package / Case : SSOP-48


Features:

* Low Supply-Voltage Range, 1.8 V to 3.6 V
* Ultralow-Power Consumption:
    Active Mode: 250 A at 1 MHz, 2.2 V
    Standby Mode: 1.1 A
    Off Mode (RAM Retention): 0.1 A
* Five Power Saving Modes
* Wake-Up From Standby Mode in less than 6 s
* 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
* 16-Bit Sigma-Delta A/D Converter With Internal Reference and Five Differential  Analog Inputs
* 12-Bit D/A Converter
* 16-Bit Timer_A With Three Capture/Compare Registers
* Brownout Detector
* Bootstrap Loader
* Serial Onboard Programming,
   No External Programming Voltage Needed Programmable Code Protection by Security Fuse
* Integrated LCD Driver with Contrast Control for Up to 56 Segments
* MSP430x42x0 Family Members Include:
    MSP430F4250: 16KB+256B Flash Memory 256B RAM
   MSP430F4260: 24KB+256B Flash Memory  256B RAM
   MSP430F4270: 32KB+256B Flash Memory  256B RAM
* For Complete Module Descriptions, See
   The MSP430x4xx Family User's Guide,
   Literature Number SLAU056
* For Additional Device Information, See The MSP430F42x0 Device Erratasheet, Literature Number SLAZ022

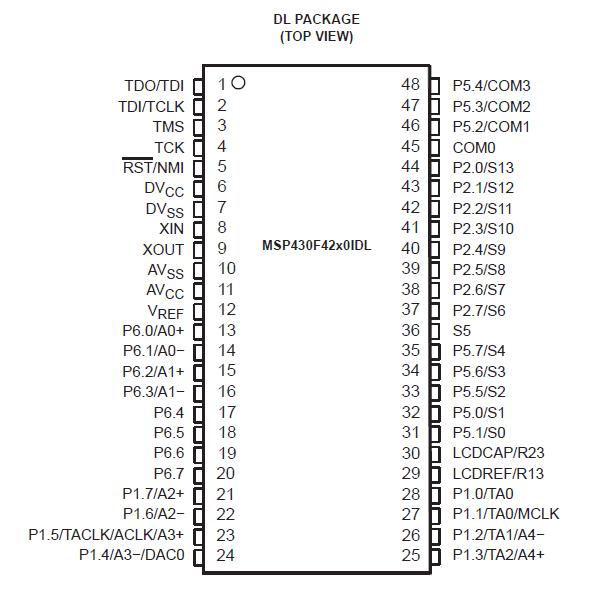

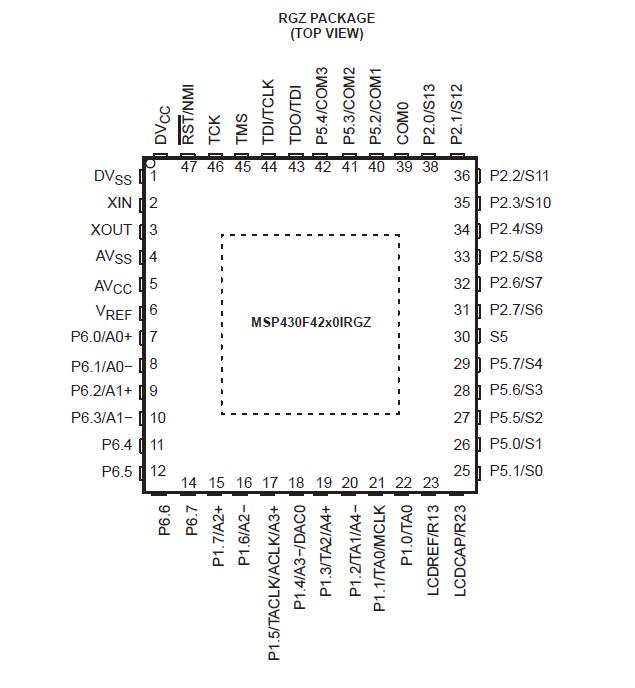

Pinout




Description

The Texas Instruments MSP430F4260IDL ultralow power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The MSP430F4260IDL features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator (DCO) of MSP430F4260IDL allows wake-up from low-power modes to active mode in less than 6s.

The MSP430F4260IDL is a microcontroller configuration with a 16-bit timer, a high performance 16-bit sigma-delta A/D converter, 12-bit D/A converter, 32 I/O pins, and a liquid crystal display driver.

Typical applications for this MSP430F4260IDL include analog and digital sensor systems, digital motor control, remote controls, thermostats, digital timers, hand-held meters, etc.

Parameters:

Technical/Catalog Information	MSP430F4260IDL
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Program Memory Size	24KB (24K x 8 + 256B)
RAM Size	256 x 8
Number of I /O	32
Package / Case	48-SSOP
Speed	8MHz
Controller Series	MSP430
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	RISC
Data Converters	A/D 1x16b; D/A 1x12b
Core Size	16-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	-
Peripherals	Brown-out Detect/Reset, LCD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	1.8 V ~ 3.6 V
Drawing Number	296; 4040048; DL; 28, 48, 56
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MSP430F4260IDL MSP430F4260IDL
