Part Number: MSP430P325









Description: The Texas Instruments MSP430 is an ultralow-power mixed-signal microcontroller family consisting of several devices whi...


Urgent Purchase

MSP430P325 General Description


The Texas Instruments MSP430 is an ultralow-power mixed-signal microcontroller family consisting of several devices which feature different sets of modules targeted to various applications. The microcontroller is designed to be battery operated for  an extended application lifetime. With 16-bit RISC architecture, 16-bit integrated registers on the CPU, and a constant generator, the MSP430 achieves maximum code efficiency. The digitallycontrolled oscillator, together with the frequency-locked-loop (FLL), provides a wakeup from a low-power mode to active mode in less than 6 STypical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data and display them or transmit them to a host system. The MSP430x32x offers an integrated 12+2 bit A/D converter with six multiplexed inputs.

MSP430P325 Maximum Ratings

Voltage applied at VCC to VSS (see Note 5)  . . . . . . . . . . . . . . . . . . . .  . . . . . . . . .0.3 V to 6 V
Voltage applied to any pin (referenced to VSS)  . . . . . . . . . . . . . . . . . ..  .0.3 V to VCC + 0.3 V
Diode current at any device terminal . . . . . . . . . . . . . . . . . . . . . . . .  . . .  . . . . . . . . . . . .± 2 mA
Storage temperature,Tstg (unprogrammed device)  . . . . . . . . . . . . . . . . .. . . . . .55 to 150
                                  Tstg (programmed device)  . . . . . . . . . . . .. . . . . . . . . . . . . .40 to 85

MSP430P325 Features

`Low Supply Voltage Range, 2.7 V 5.5 V Low Operation Current, 3 mA at 1 MHz, 3 V
`Ultralow Power Consumption (Standby Mode Down to 0.1 A
`Five Power-Saving Modes
`Wakeup From Standby Mode in 6 S
`16-Bit RISC Architecture, 300 ns Instruction Cycle Time
`Single Common 32 kHz Crystal, Internal System Clock up to 3.3 MHz
`Integrated LCD Driver for up to 84 Segments
`Integrated 12+2 Bit A/D Converter Family Members Include:
     MSP430P325, 16KB OTP, 512 Byte RAM
`EPROM Version Available for Prototyping: PMS430E325
`Serial Onboard Programming
`Programmable Code Protection by Security Fuse
`Avaliable in 64 Pin Quad Flatpack (QFP), 68 Pin Plastic J-Leaded Chip Carrier (PLCC), 68 Pin J-Leaded Ceramic Chip Carrier (JLCC) Package (EPROM Version)

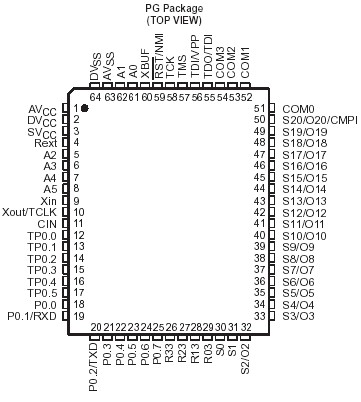

MSP430P325 Connection Diagram

MSP430P325 Connection Diagram

MSP430P325 datasheet

MSP430P325
PDF/DataSheet Download
