General Description
MTV212M32 General Description
The MTV212M32 micro-controller is an 8051 CPU core embedded device specially tailored to Monitor applications. It includes an 8051 CPU core, 512-byte SRAM, SYNC processor, 14 built-in PWM DACs, VESA DDC interface, 3-channel A/D converter and a 32K-byte internal program Flash-ROM.
MTV212M32 Maximum Ratings
at: Ta= 0 to 70 oC, VSS=0V
|
Name |
Symbol |
Range |
Unit |
| Maximum Supply Voltage |
VDD |
-0.3 to +6.0 |
V |
| Maximum Input Voltage |
Vin |
-0.3 to VDD+0.3 |
V |
| Maximum Output Voltage |
Vout |
-0.3 to VDD+0.3 |
|
| Maximum Operating Temperature |
Topg |
0 to +70 |
|
| Maximum Storage Temperature |
Tstg |
-25 to +125 |
MTV212M32 Features
· 8051 core, 12MHz operating frequency.
· 512-byte RAM; 32K-byte program Flash-ROM support In System Programming(ISP).
· Maximum 14 channels of 5V open-drain PWM DAC.
· Maximum 32 bi-directional I/O pins.
· SYNC processor for composite separation/insertion, H/V polarity/frequency check, polarity adjustment and programmable clamp pulse output.
· Built-in self-test pattern generator with four free-running timings.
· Built-in low power reset circuit.
· Compliant with VESA DDC1/2B/2Bi/2B+ standard.
· Dual slave IIC addresses.
· Single master IIC interface for internal device communication.
· 4-channel 6-bit ADC.
· Watchdog timer with programmable interval.
· 40-pin DIP, 42-pin SDIP or 44-pin PLCC package.

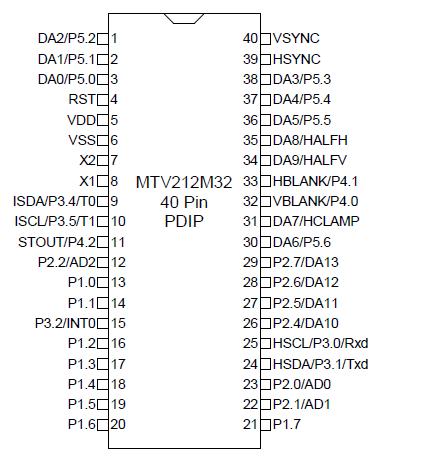

MTV212M32 Connection Diagram
MTV212M32
PDF/DataSheet Download
- Datasheet: MTV212M32
- File Size: 219926 KB
- Manufacturer: Myson
- Click here to Download
