NC7ST08 General Description
NC7ST08 Maximum Ratings
Supply Voltage (VCC) .......................−0.5V to +7.0V
DC Input Diode Current (IIK)
@VIN < −0.5V ...............................−20 mA
@VIN VCC+ 0.5V............................ +20 mA
DC Input Voltage (VIN) ................... −0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VOUT < −0.5V ...............................−20 mA
VOUT > VCC+ 0.5V ............................+20 mA
Output Voltage (VOUT) ....................−0.5V to VCC + 0.5V
DC Output Source or Sink Current (IOUT) ................±12.5 mA
DC VCC or Ground Current per
Supply Pin (ICC or IGND).......................... ±25 mA
Storage Temperature (TSTG) ................. −65°C to +150°C
Junction Temperature (TJ) ..........................150°C
Lead Temperature (TL);
(Soldering, 10 seconds) ........................... 260°C
Power Dissipation (PD) @+85°C
SOT23-5 ...................................200 mW
SC70-5 ...................................150 mW
NC7ST08 Features
`Space saving SOT23 or SC70 5-lead package
` High Speed: tPD 6 ns (typ), VCC = 5V, CL = 15 pF, TA = 25°C
` Low Quiescent Power, ICC < 1 A, VCC = 5.5V
` Balanced Output Drive; 2 mA IOL, −2 mA IOH
` TTL-compatible inputs

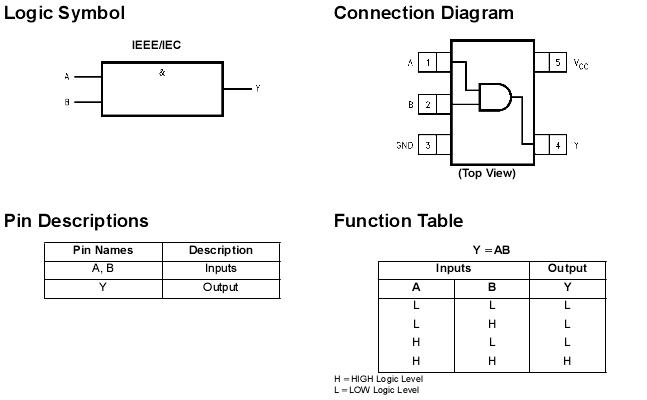

NC7ST08 Connection Diagram
