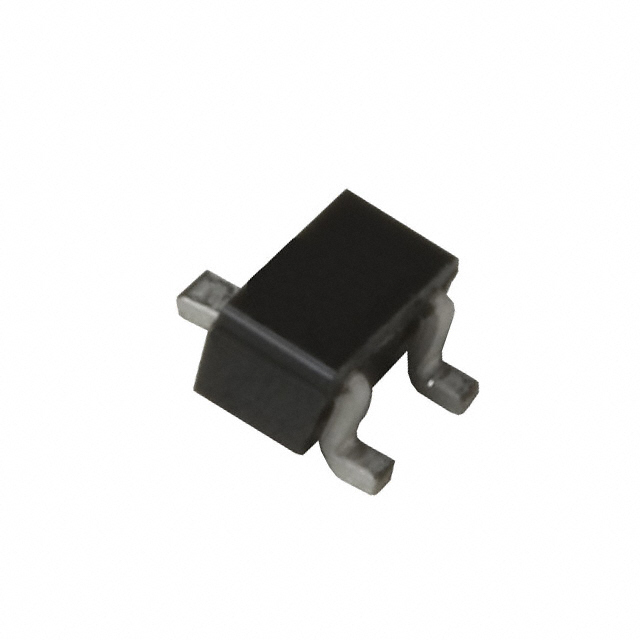

See larger image

SeekIC No. : 003435075 Detail

NE85619-T1: TRANS NPN 1GHZ SMD

NE85619-T1 Data Sheet

Get Latest Price

Part Number:: NE85619-T1
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

NE85001 evaluate
Features: • Class A operation• High power output• High reliabilitySpecifications...
NE8500199 evaluate
Transistors RF GaAs 1W C Band MESFET
NE85002 evaluate
Features: • Class A operation• High power output• High reliabilitySpecifications...

Product Details

Quick Details

Series:	-	Manufacturer:	CEL
Transistor Type:	NPN	Typical Resistor Ratio :	0.12
Voltage - Collector Emitter Breakdown (Max):	12V	Frequency - Transition:	4.5GHz
Noise Figure (dB Typ @ f):	1.4dB ~ 2.2dB @ 1GHz ~ 2GHz	Gain:	6.5dB ~ 12.5dB
Power - Max:	100mW	DC Current Gain (hFE) (Min) @ Ic, Vce:	80 @ 20mA, 10V
Current - Collector (Ic) (Max):	100mA	Mounting Type:	Surface Mount
Package / Case:	SC-75, SOT-416	Supplier Device Package:	3-SuperMiniMold

Description

Series: -
Transistor Type: NPN
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)
Voltage - Collector Emitter Breakdown (Max): 12V
Manufacturer: CEL
Power - Max: 100mW
Package / Case: SC-75, SOT-416
Current - Collector (Ic) (Max): 100mA
Supplier Device Package: 3-SuperMiniMold
Frequency - Transition: 4.5GHz
Noise Figure (dB Typ @ f): 1.4dB ~ 2.2dB @ 1GHz ~ 2GHz
Gain: 6.5dB ~ 12.5dB
DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 20mA, 10V

Parameters:

Technical/Catalog Information	NE85619-T1
Vendor	NEC (VA)
Category	Discrete Semiconductor Products
Frequency - Transition	4.5GHz
Noise Figure (dB Typ @ f)	1.4dB ~ 2.2dB @ 1GHz ~ 2GHz
Current - Collector (Ic) (Max)	100mA
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 20mA, 10V
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Gain	12.5dB ~ 6.5dB
Power - Max	100mW
Compression Point (P1dB)	-
Package / Case	Surface Mount
Packaging	Cut Tape (CT)
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NE85619 T1 NE85619T1 NE85619CT ND NE85619CTND NE85619CT
