Product Details

Description



Features:

• High Speed: tPD = 1.0 ns (Typ) at VCC = 5.0 V
• Low Power Dissipation: ICC = 1.0 A (Max) at TA = 25°C
• Standard CMOS Logic Levels
• High Bandwidth, Improved Linearity
• Low RDSON: 8 Max at 3 V
• Break Before Make Circuitry, Prevents Inadvertent Shorts
• This is a Pb−Free Device



Application

• Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV
• May be used for Clock Switching, Data MUX'ing, etc.
• Can Switch Balanced Signal Pairs, e.g. LVDS > 200 Mb/s



Pinout

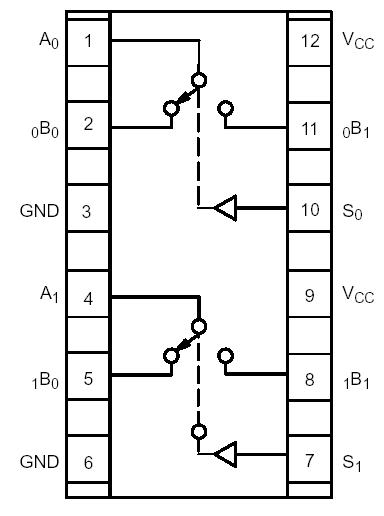

  Connection Diagram


Specifications

Rating Symbol Value Unit
Supply Voltage VCC -0.5 to +7.0 V
DC Switch Voltage (Note 1) VIS -0.5 to VCC + 0.5 V
DC Input Voltage (Note 1) VIN -0.5 to + 7.0 V
DC Input Diode Current @ VIN < 0 V IIK -50 mA
DC Output Current IOUT 128 mA
DC VCC or Ground Current ICC/IGND +100 mA
Storage Temperature Range Tstg -65 to +150 °C
Junction Temperature Under Bias TJ 150 °C
Junction Lead Temperature (Soldering, 10 Seconds) TL 260 °C
Power Dissipation @ +85°C PD 180 mW

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. The input and output negative voltage ratings may be exceeded if the input and output diode current ratings are observed.




Description

The NLAS3158 is an advanced CMOS analog switch fabricated with silicon gate CMOS technology. INLAS3158 achieves very low propagation delay and RDSON resistances while maintaining CMOS low power dissipation. Analog and digital voltages that may vary across the full power−supply range (from VCC to GND). NLAS3158 is a drop in replacement for the PI5A3158.

The select pin of NLAS3158 has overvoltage protection that allows voltages above VCC, up to 7.0 V to be present on the pin without damage or disruption of operat ion of the part , regardless of the operating voltage.
