MFG:N/A Package Cooled:QFN-16 D/C:05+
MFG: N/A
Package Cooled: QFN-16
D/C: 05+
Description: The NLAS3699 is a dual independent ultra−low RON DPDT analog switch. This device is designed for...

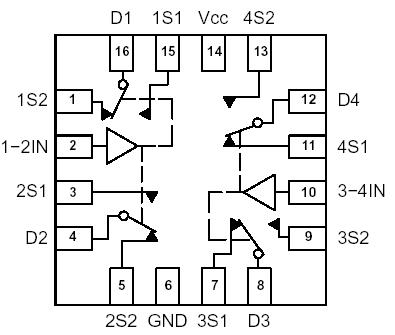

The NLAS3699 is a dual independent ultra−low RON DPDT analog switch. This device is designed for low operating voltage, high current switching of speaker output for cell phone applications. It can switch a balanced stereo output. The NLAS3699 can handle a balanced microphone/speaker/ring−tone generator in a monophone mode. The device contains a break−make feature.
| Symbol | Rating | Value | Unit |
| VCC | Positive DC Supply Voltage | −0.5 to +6.0 | V |
| VIS | Analog Input Voltage (VNO, VNC, or VCOM) | −0.5 VIS VCC +0.5 | V |
| VIN | Digital Select Input Voltage | −0.5 VIN +VCC | V |
| Ianl1 | Continuous DC Current from COM to NC/NO | ±300 | mA |
| Ianl−pk1 | Peak Current from COM to NC/NO, 10 Duty Cycles (Note 1) | ±500 | mA |
| Iclmp | Continuous DC Current into COM/NC/NO with respect to VCC or GND | ±100 | mA |
Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.
1. Defined as 10% ON, 90% off duty cycle.
• Single Supply Operation 1.65 to 4.7 V VCC Function Directly from LiON Battery
• Maximum Breakdown Voltage: 5.0 V
• Tiny 3 x 3 mm QFN Pb−Free Package Meet JEDEC MO−220 Specifications
• Low Static Power
NLAS3699
