NTGS5120PT1G

MOSFET PFET TSOP6 60V 2.5A 110mOhm

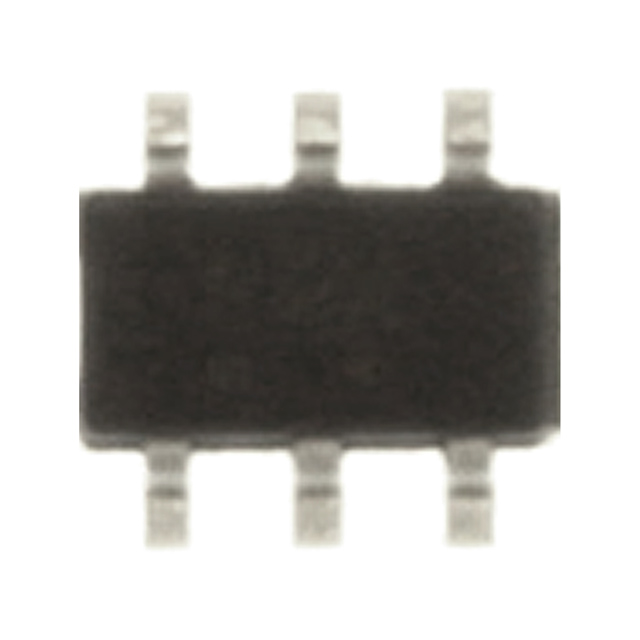

product image

NTGS5120PT1G Picture
See larger image
SeekIC No. : 00148238 Detail

NTGS5120PT1G: MOSFET PFET TSOP6 60V 2.5A 110mOhm

NTGS5120PT1G Data Sheet

floor Price/Ceiling Price

US $ .21~.39 / Piece | Get Latest Price
Part Number:
NTGS5120PT1G
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~25
  • 25~100
  • 100~250
  • Unit Price
  • $.39
  • $.29
  • $.25
  • $.21
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Transistor Polarity : P-Channel Drain-Source Breakdown Voltage : 60 V
Gate-Source Breakdown Voltage : +/- 20 V Continuous Drain Current : 2.5 A
Resistance Drain-Source RDS (on) : 111 mOhms Configuration : Single Quad Drain
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : TSOP Packaging : Reel

Description

Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Packaging : Reel
Transistor Polarity : P-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 60 V
Configuration : Single Quad Drain
Continuous Drain Current : 2.5 A
Package / Case : TSOP
Resistance Drain-Source RDS (on) : 111 mOhms


Parameters:

Technical/Catalog InformationNTGS5120PT1G
VendorON Semiconductor
CategoryDiscrete Semiconductor Products
Mounting TypeSurface Mount
FET PolarityP-Channel
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25° C1.8A
Rds On (Max) @ Id, Vgs111 mOhm @ 2.9A, 10V
Input Capacitance (Ciss) @ Vds 942pF @ 30V
Power - Max600mW
PackagingTape & Reel (TR)
Gate Charge (Qg) @ Vgs18.1nC @ 10V
Package / Case6-TSOP
FET FeatureLogic Level Gate
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names NTGS5120PT1G
NTGS5120PT1G
