PD3720A

Features: Valid photocell : 2700 pixels * 3Photocell's pitch : 10.5 mLine spacing : 42 m (4 lines) Red line-Green line, Green line-Blue lineColor filter : Primary colors (red, green and blue), pigment filter (with light resistance 107lx.hour)Resolution : 12 dot/mm A4 (210 * 297 mm) size (shorter s...

product image

PD3720A Picture
See larger image
SeekIC No. : 004457115 Detail

PD3720A: Features: Valid photocell : 2700 pixels * 3Photocell's pitch : 10.5 mLine spacing : 42 m (4 lines) Red line-Green line, Green line-Blue lineColor filter : Primary colors (red, green and blue), pigme...

PD3720A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PD3720A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Valid photocell : 2700 pixels * 3
Photocell's pitch : 10.5 m
Line spacing : 42 m (4 lines)  Red line-Green line, Green line-Blue line
Color filter : Primary colors (red, green and blue), pigment filter (with light resistance 107 lx.hour)
Resolution : 12 dot/mm  A4 (210 * 297 mm) size (shorter side)
   300 dpi  US letter (8.5" * 11") size (shorter side)
Drive clock level : CMOS output under 5 V operation
Data rate : 3 MHz MAX.
Power supply : +12 V
On-chip circuits : Reset feed-through level clamp circuits
   Clamp pulse generation circuit
   Voltage amplifiers
Pin assign : Compatible with the PD3720


Pinout

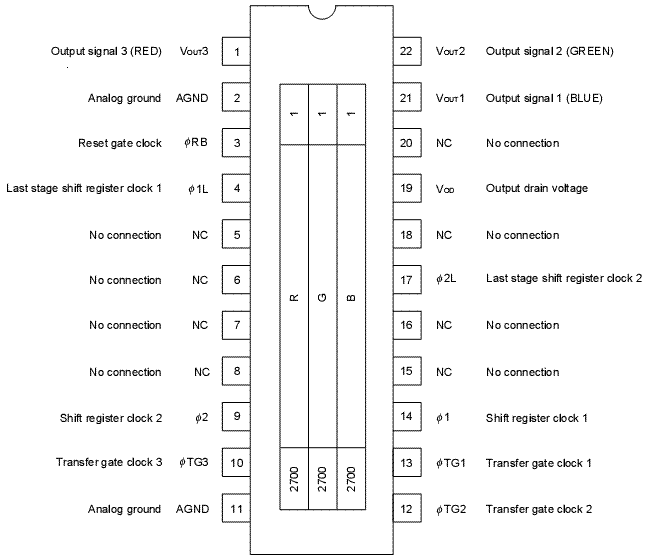

Connection Diagram


Specifications

Parameter
Symbol Ratings Unit
Output drain voltage VOD 0.3 to +15 V
Shift register clock voltage V1, V2, V1L, V2L 0.3 to +15 V
Reset gate clock voltage VRB 0.3 to +15 V
Transfer gate clock voltage
VTG1 VTG3 0.3 to +15 V
Operating ambient temperature TA 25 to +60
Storage temperature Tstg 40 to +70

Caution Exposure to ABSOLUTE MAXIMUM RATINGS for extended periods may affect device reliability; exceeding the ratings could cause permanent damage. The parameters apply independently.
