PEB20590

Features: VIP is a universal ISDN transceiver IC for differentinterface modes (S/T or UPN).• Eight 2B+D line interfaces with full duplex transceivers S/T interfaces at 192 kbit/s with line transceivers according to ITU-T I.430, ETSI 300.012 and ANSI T1.605 UPN interfaces at 384 kbit/s with l...

product image

PEB20590 Picture
See larger image
SeekIC No. : 004457987 Detail

PEB20590: Features: VIP is a universal ISDN transceiver IC for differentinterface modes (S/T or UPN).• Eight 2B+D line interfaces with full duplex transceivers S/T interfaces at 192 kbit/s with line tra...

PEB20590 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PEB20590
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

VIP is a universal ISDN transceiver IC for differentinterface modes (S/T or UPN).
• Eight 2B+D line interfaces with full duplex transceivers
S/T interfaces at 192 kbit/s with line transceivers according to ITU-T I.430, ETSI 300.012 and ANSI T1.605
UPN interfaces at 384 kbit/s with line transceivers according to ZVEI standard
Receive timing recovery
Conversion between pseudo-ternary and binary codes
Conversion between UPN or S/T frames and IOM-2000 frame structures
Execution of test loops
Frame alignment in trunk applications with maximum wander correction of ± 25 µs
UPN interface compatible to OCTAT-P (PEB 2096)1)
S/T interface compatible to QUAT-S (PEB 2084)2)
• IOM-2000 interface to DELIC supporting up to three VIPs (24 channels)
Transceiver initialization and configuration
Control of layer-1 activation/deactivation
Exchange of command and status information
• Signaling control for all VIP channels by dedicated HDLC controllers in DELIC
• Single 3.3 V power supply
• JTAG IEEE1149.1-compliant test interface with dedicated reset input
Note: UPN refers to a version of the UP0 interface (meeting the ZVEI standard) with a
reduced loop length of up to 1.3 km, depending on the type of cable.


Pinout

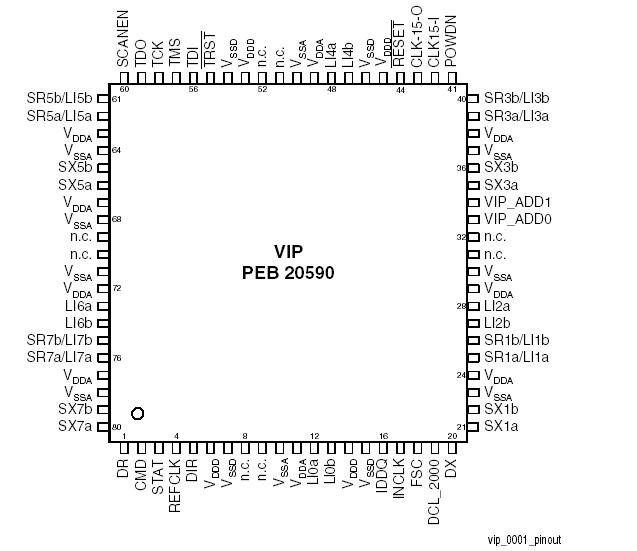

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Storage temperature
Tstg
65 to 150
°C
IC supply voltage
VDD
0.3 to 4.6
V
DC input voltage (except I/Os)
VI
0.3 to 6.0
V
DC output voltage (including I/Os);
output in high or low state
VO
0.3 to VDD + 0.3
V
DC output voltage (including I/Os);
output in tri-state
VI, VO
0.3 to 6.0
V
ESD robustness 1)
HBM: 1.5 kΩ, 100 pF
VESD,HBM
2000
V
1) According to MIL-Std 883D, method 3015.7 and ESD Ass. Standard EOS/ESD-5.1-1993. The SX pins are not
protected against voltage stress > 1500 V (versus VS or GND).
Note: Stresses above those listed here may cause permanent damage to the
device. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability.
Maximum ratings are absolute ratings; exceeding only one of these values
may cause irreversible damage to the integrated circuit.
