Part Number: PEMT1
Description: PNP transistor pair in a SOT666 plastic package. NPN complement: PEMX1.
- Table of contents:
PEMT1
-
Suppliers
DataSheet
General Description
PEMT1 General Description
PNP transistor pair in a SOT666 plastic package. NPN complement: PEMX1.
PEMT1 Maximum Ratings
| SYMBOL | PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
| Per transistor; for the PNP transistor with negative polarity | |||||
| VCBO | collector-base voltage |
open emitter |
- |
-50 |
V |
| VCEO | collector-emitter voltage |
open base |
- |
-40 |
V |
| VEBO | emitter-base voltage |
open collector |
- |
-5 |
V |
| IC | collector current (DC) |
- |
-100 |
mA | |
| ICM | peak collector current |
- |
-200 |
mA | |
| IBM | peak base current |
- |
-200 |
mA | |
| Ptot | total power dissipation |
Tamb 25 °C; note 1 |
- |
200 |
mW |
| Tstg | storage temperature |
-65 |
+150 |
°C | |
| Tj | junction temperature |
- |
150 |
°C | |
| Tamb | operating ambient temperature |
-65 |
+150 |
°C | |
| Per device | |||||
| Ptot | total power dissipation |
Tamb25 °C; note 1 |
- |
300 |
mW |
1. Transistor mounted on an FR4 printed-circuit board.
PEMT1 Features
· 300 mW total power dissipation
· Very small 1.6 × 1.2 mm ultra thin package
· Self alignment during soldering due to straight leads
· Replaces two SC-75/SC-89 packaged transistors on same PCB area
· Reduced required PCB area
· Reduced pick and place costs.
· Very small 1.6 × 1.2 mm ultra thin package
· Self alignment during soldering due to straight leads
· Replaces two SC-75/SC-89 packaged transistors on same PCB area
· Reduced required PCB area
· Reduced pick and place costs.
PEMT1 Typical Application
· General purpose switching and amplification.

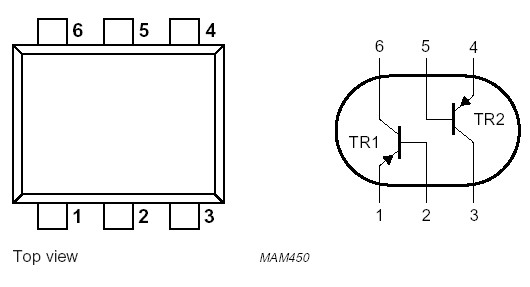

PEMT1 Connection Diagram
PEMT1
