PESD1LIN General Description


PESD1LIN in very small SOD323 (SC-76) SMD plastic package designed to protect one automotive LIN bus line from the damage caused by ElectroStatic Discharge (ESD) and other transients.

PESD1LIN Maximum Ratings

Symbol

Parameter

Conditions

Min

Max

Unit

PPP peak pulse power 8/20 s [1]
-

160

W

IPP peak pulse current 8/20 s [1]

-

3

A

Tj junction temperature

-

150

°C

Tamb ambient temperature

-65

+150

°C

Tstg storage temperature

-65

+150

°C

[1] Non-repetitive current pulse 8/20 s exponentially decay waveform; see Figure 1.

PESD1LIN Features

•ESD protection of one automotive LIN bus line
•Asymmetrical diode configuration ensures an optimized Electromagnetical Immunity of
•LIN Electronic Control Unit (ECU)
•Due to the integrated diode structure only one very small SOD323 package is needed
•Max. peak pulse power: PPP = 160 W at tp = 8/20 s
•Low clamping voltage: V(CL)R = 40 V at IPP = 1 A
•Ultra low leakage current: IRM < 1 nA
•ESD protection of up to 23 kV
•IEC 61000-4-2, level 4 (ESD)
•IEC 61000-4-5 (surge); IPP = 3 A at tp = 8/20 s

PESD1LIN Typical Application

•LIN bus protection
•Automotive applications

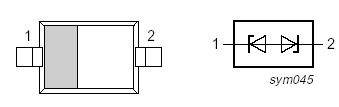

PESD1LIN Connection Diagram

PESD1LIN Connection Diagram

PESD1LIN datasheet
