MFG:PERICOM Package Cooled:STK D/C:0611+
MFG: PERICOM
Package Cooled: STK
D/C: 0611+
Description: Pericom Semiconductor’s PI3C series of logic circuits are produced using the Company’s advan...
Pericom Semiconductor’s PI3C series of logic circuits are produced using the Company’s advanced submicron CMOS technology, achieving industry leading performance.

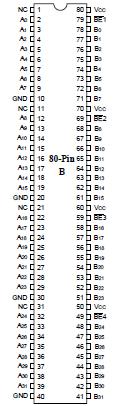

The PI3C34X245 is a 2.5V or 3.3V, 32-bit, 2-port bus switch designed with a low ON resistance (5W) allowing inputs to be connected directly to outputs. The bus switch creates no additional propagational delay or additional ground bounce noise. The switches are turned ON by the Bus Enable ( BE) input signal. It is very useful in switching signals that have high bandwidth (>400 MHz).
Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ........................................................ –65°C to +150°C
Ambient Temperature with Power Applied ......................... –40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) ........ –0.5V to +4.6V
Supply Voltage to Ground Potential (Outputs & D/O Only) ...... –0.5V to +4.6V
DC Input Voltage .................................................................. –0.5V to +5.5V
DC Output Current ............................................................................120mA
Power Dissipation ................................................................................ 0.5W
Note: Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
PI3C34X245
PDF/DataSheet Download

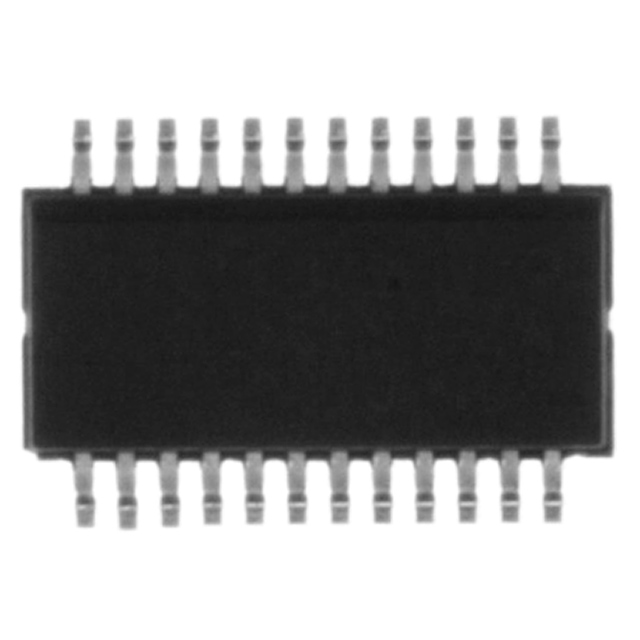

IC 10-BIT 2-PORT BUS SW 24-QSOP
