Part Number: PI5C3125C
Description: Pericom Semiconductor’s PI5C series of logic circuits are produced using the Company’s advan...
- Table of contents:
PI5C3125C
-
Suppliers
DataSheet
General Description
PI5C3125C General Description
Pericom Semiconductor’s PI5C series of logic circuits are produced using the Company’s advanced submicron CMOS technology, achieving industry leading performance.
The PI5C3125C and PI5C3126C are 5V, 4-bit, 2-port bus switches. They are intended for PCI Hot-Plug applications. Industry leading advantages include a propagation delay of 250ps, resulting from its 5-ohm channel resistance and low I/O capacitance. The A-ports switch data to B outputs and are bidirectional. The PI5C3125C device has active LOW enables, and the PI5C3126C has active HIGH enables.
The A-port can handle up to –2V undershoot when the switch is disabled.
PI5C3125C Maximum Ratings
Above which the useful life may be impaired. For user guidelines, not tested.
Storage Temperature ........................................................... –65°C to +150°C
Ambient Temperature with Power Applied ............................ –40°C to +85°C
Supply Voltage to Ground Potential (Inputs & VCC Only) ...... –0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) .... –0.5V to +7.0V
DC Input Voltage ................................................................... –0.5V to +7.0V
DC Output Current ............................................................................ 120mA
Power Dissipation ................................................................................ 0.5W
Note:
Stresses greater than those listed under MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
PI5C3125C Features
· RON is 5ohm typical
· Undershoot protection on A port only: –2V
· Direct bus connection when switches are ON
· Industrial Operation Temperature: –40°C to +85°C
· Near zero propagation delay
· Low Channel ON Capacitance: 14pF max.
· Packages available: 14-pin 173 mil wide plastic TSSOP (L) 14-pin 150 mil wide plastic SOIC (W) 16-pin 150 mil wide plastic QSOP (Q)
· Undershoot protection on A port only: –2V
· Direct bus connection when switches are ON
· Industrial Operation Temperature: –40°C to +85°C
· Near zero propagation delay
· Low Channel ON Capacitance: 14pF max.
· Packages available: 14-pin 173 mil wide plastic TSSOP (L) 14-pin 150 mil wide plastic SOIC (W) 16-pin 150 mil wide plastic QSOP (Q)
PI5C3125C Typical Application
• PCI Hot Plugging for live insertion
• Memory bank sharing
• Memory bank sharing

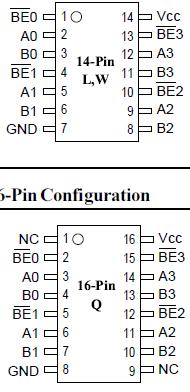

PI5C3125C Connection Diagram
PI5C3125C
