Part Number: PLL103-02
Description: The PLL103-02 is designed as a 3.3V/2.5V buffer to distribute high-speed clocks in PC applications. Th...
- Table of contents:
PLL103-02
-
Suppliers
DataSheet
General Description
PLL103-02 General Description
The PLL103-02 is designed as a 3.3V/2.5V buffer to distribute high-speed clocks in PC applications. The device has 24 outputs. These outputs can be configured to support four unbuffered DDR DIMMS or to support 2 unbuffered standard SDRAM DIMMS and 2 DDR DIMMS. The PLL103-02 can be used in conjunction with the PLL202-04 or similar clock synthesizer for the VIA Pro 266 chipset. The PLL103-02 also has an I2C interface, which can enable or disable each output clock. When power up, all output clocks are enabled (has internal pull up).
PLL103-02 Maximum Ratings
|
PARAMETERS |
SYMBOL |
MIN. |
MAX. |
UNITS |
| Supply Voltage |
VDD |
VSS-0.5 |
7.0 |
V |
| Input Voltage, dc |
VI |
VSS-0.5 |
VDD+0.5 |
V |
| Output Voltage, dc |
VO |
VSS-0.5 |
VDD+0.5 |
V |
| Storage Temperature |
TS |
-65 |
150 |
|
| Ambient Operating Temperature |
TA |
0 |
70 |
|
| ESD Voltage |
2 |
KV |
Exposure of the device under conditions beyond the limits specified by Maximum Ratings for extended periods may cause permanent damage to the device and affect product reliability. These conditions represent a stress rating only, and functional operations of the device at these or any other conditions above the operational limits noted in this pecification is not implied.
PLL103-02 Features
· Supports up to four DDR DIMMS or 2 SDRAM DIMMS.
· Supports 266MHz DDR SDRAM.
· One additional output for feedback.
· Less than 5ns delay.
· Skew between any outputs is less than 100 ps.
· 2.5V or 3.3V Supply range.
· Enhanced DDR and SDRAM Output Drive selected by I2C.
· Available in 48 pin SSOP.
· Supports 266MHz DDR SDRAM.
· One additional output for feedback.
· Less than 5ns delay.
· Skew between any outputs is less than 100 ps.
· 2.5V or 3.3V Supply range.
· Enhanced DDR and SDRAM Output Drive selected by I2C.
· Available in 48 pin SSOP.

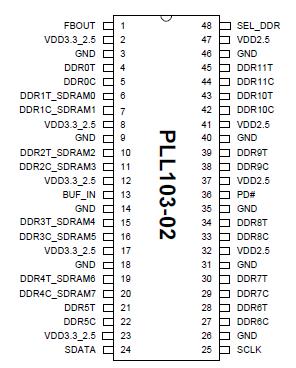

PLL103-02 Connection Diagram
PLL103-02
PDF/DataSheet Download
- Datasheet: PLL103-02
- File Size: 213369 KB
- Manufacturer: ETC [ETC]
- Click here to Download
