Part Number: PP300T120









Description: The Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper...


Urgent Purchase

PP300T120 General Description


The Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.

The power assembly is mounted on a forced aircooled heatsink and features state-of-the-art Powerex F-series trench gate IGBTs with low conduction and switching losses for high efficiency operation. The POW-R-PAKTM includes a low inductance laminated bus structure, optically isolated gate drive interfaces, isolated gate drive power supplies, and a DC-link capacitor bank. The control board provides a simple user interface along with built-in protection features including overvoltage,undervoltage lockout, overcurrent,overtemperature, and short circuit detection.

Depending on application characteristics the POW-R-PAKTM is suitable for operation with DC bus voltages up to 800VDC and switching frequencies above 20kHz.

PP300T120 Maximum Ratings

General
Symbol

Units
IGBT Junction Temperature
Tj
-40 to +150
°C
Storage Temperature
Tstg
-40 to +125
°C
Operating Temperature
Top
-25 to +85
°C
Voltage Applied to DC terminals
VCC
800
Volts
Isolation Voltage, AC 1 minute, 60Hz sinusoidal
Viso
2500
Volts
IGBT Inverter
Collector Current (TC = 25°C)
IC
300
Amperes
Peak Collector Current (Tj < 150°C)
ICM
600
Amperes
Emitter Current
IE
300
Amperes
Peak Emitter Current
IEM
600
Amperes
Maximum Collector Dissipation (Tj < 150°C)
Pc
890
Watts
Gate Drive Board
Unregulated +24V Power Supply

30
Volts
Regulated +15V Power Supply

18
Volts
PWM Signal Input Voltage

20
Volts
Fault Output Supply Voltage

30
Volts
Fault Output Current

50
mA

PP300T120 Features

·High performance IGBT inverter bridge
·Integrated gate drive with fault monitoring & protection
·System status / troubleshooting LEDs to verify or monitor proper operation
·Isolated gate drive power supplies
·Low inductance laminated bus
·Output current measurement & feedback
·Superior short circuit detection & shoot through prevention

PP300T120 datasheet

PP300T120
PDF/DataSheet Download

  • Datasheet: PP300T120
  • File Size: 371391 KB
  • Manufacturer: POWEREX [Powerex Power Semiconductors]
  • Click here to Download

Find PP300T120 Suppliers

  • ·PP300B060
  • POWEREX [Powerex Power Semiconductors]
  • POW-R-PAK 300A / 600V H-Bridge IGBT Assembly
  • 370240 KB
  • PP300B060 Datasheet Download
  • ·PP300B120
  • POWEREX [Powerex Power Semiconductors]
  • POW-R-PAK 300A / 1200V H-Bridge IGBT Assembly
  • 370879 KB
  • PP300B120 Datasheet Download
  • ·PP300D060
  • POWEREX [Powerex Power Semiconductors]
  • POW-R-PAK 300A / 600V Half Bridge IGBT Assembly
  • 371956 KB
  • PP300D060 Datasheet Download
  • ·PP300D120
  • POWEREX [Powerex Power Semiconductors]
  • POW-R-PAK 300A / 1200V Half Bridge IGBT Assembly
  • 372505 KB
  • PP300D120 Datasheet Download
  • ·PP300T060
  • POWEREX [Powerex Power Semiconductors]
  • POW-R-PAK 300A / 1200V Half Bridge IGBT Assembly
  • 370838 KB
  • PP300T060 Datasheet Download
  • ·PP3100EA
  •
  • Direct ProTek Replacement:PP3100EA
  • 117118 KB
  • PP3100EA Datasheet Download
  • ·PP3100EB
  •
  • Direct ProTek Replacement:PP3100EB
  • 117118 KB
  • PP3100EB Datasheet Download
  • ·PP3100EC
  •
  • Direct ProTek Replacement:PP3100EC
  • 117118 KB
  • PP3100EC Datasheet Download

Related Part Number

PP300T120 Relative Products

  • PP300T060

    PP300T060

    The PP300T060 Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.The PP300T060 pow...

  • PP300D120

    PP300D120

    The PP300D120 Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.The PP300D120 pow...

  • PP300D060

    PP300D060

    The PP300D060 Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.The PP300D060 pow...

  • PP300B120

    PP300B120

    The PP300B120 Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.The PP300B120 pow...

  • PP300B060

    PP300B060

    The PP300B060 Powerex POW-R-PAKTM is a configurable IGBT based power assembly that may be used as a converter, chopper, half or full bridge, or three phase inverter for motor control, power supply, UPS or other power conversion applications.The PP300B060 pow...

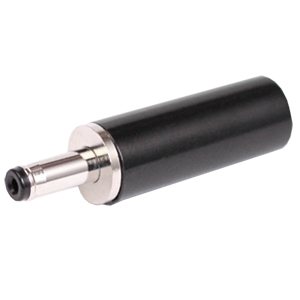

  • PP3-002D
