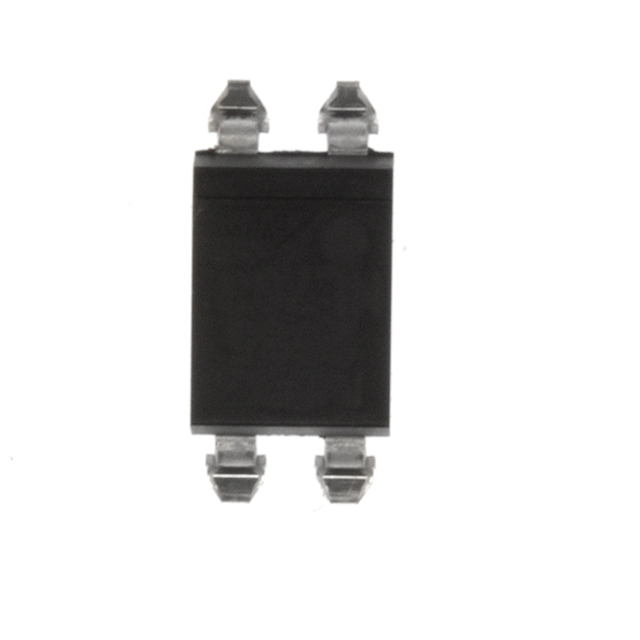

PS2565L-2 Product Image

PS2 Series Datasheet download

Five Points

Part Number: PS2565L-2



MFG: NEC



D/C: 97

Description: The PS2565-1, -2 and PS2565L-1, -2 are optically coupled isolators containing GaAs light emitting diodes and an NPN sil...


Urgent Purchase

PS2565L-2 General Description


The PS2565-1, -2 and PS2565L-1, -2 are optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor.

PS2565-1, -2 are in a plastic DIP (Dual In-line Package) and PS2565L-1, -2 are lead bending type (Gull-wing) for surface mount.

PS2565L-2 Maximum Ratings

Parameter Symbol
Ratings
Unit
PS2565-1,
PS2565L-1
PS2565-2,
PS2565L-2
Diode Forward Current (DC) IF
80
mA
Power Dissipation Derating ∆PC/°C
1.5
1.2
mW/°C
Power Dissipation PD
250
200
mW/ch
Peak Forward Current*1 IFP
1
A
Transistor Collector to Emitter Voltage VCEO
80
V
Emitter to Collector Voltage VECO
7
V
Collector Current IC
50
mA
Power Dissipation Derating ∆PC/°C
1.5
1.2
mW/°C
Power Dissipation PC
150
120
mW/ch
Isolation Voltage*2 BV
5 000
3 750*3
Vr.m.s.
Operating Ambient Temperature TA
-55 to +100
°C
Storage Temperature Tstg
-55 to +150
°C
*1 PW = 100 ms, Duty Cycle = 1 %
*2 AC voltage for 1 minute at TA = 25 °C, RH = 60 % between input and output
*3 VDE0884 approved products (Option)

PS2565L-2 Features

• AC input response
• High isolation voltage BV = 5 000 Vr.m.s.: standard products BV = 3 750 Vr.m.s.: VDE0884 approved products (Option)
• High collector to emitter voltage (VCEO = 80 V)
• High current transfer ratio (CTR = 200 % TYP.)
• High-speed switching (tr = 3 ms TYP., tf = 5 ms TYP.)
• UL approved (File No. E72422 (S) )
• CSA approved (No. CA 101391)
• BSI approved (BS415, BS7002) No. 7112
• SEMKO approved (SS4410165) No. 9317144
• NEMKO approved (NEK-HD 195S6) No. A21409
• DEMKO approved (Section 101, 137) No. 300535
• FIMKO approved (E69-89) No. 167265-08
• VDE0884 approved (Option)

PS2565L-2 Typical Application

• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
