General Description
PS2633L General Description
PS2633, PS2633L, PS2634, and PS2634L are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon Darlington-connected phototransistor. PS2633 and PS2634 are in a plastic DIP (Dual In-Line Package). Ps2633L and PS2634L are lead bending type (Gull-wing) for surface mount. PS2633 and PS2633L have a base pin and PS2634 and PS2634L have no base pin.
PS2633L Maximum Ratings
| SYMBOLS | PARAMETERS |
UNITS |
RATINGS |
| Diode | |||
| VR | Reverse Voltage |
V |
6 |
| IF | Forward Current (DC) |
mA |
80 |
| PD | Power Dissipation |
mW |
150 |
| I F (Peak) | Peak Forward Current PW = 100 ms, Duty Cycle 1% |
A |
1 |
| Transistor | |||
| VCEO | Collector to Emitter Voltage |
V |
300 |
| VEBO | Emitter to Base Voltage2 |
V |
6 |
| IC | Collector Current |
mA |
150 |
| PC | Power Dissipation |
mW |
300 |
| Coupled | |||
| BV | Isolation Voltage3 |
Vr.m.s. |
5000 |
| TSTG | Storage Temperature |
°C |
-55 to +150 |
| TOP | Operating Temperature |
°C |
-55 to +100 |
PS2633L Features
• HIGH ISOLATION VOLTAGE BV: 5 k Vr.m.s. MIN
• HIGH COLLECTOR TO EMITTER VOLTAGE VCEO: 300 V MIN
• ULTRA HIGH CURRENT TRANSFER RATIO CTR: 1000% MIN
• HIGH SPEED SWITCHING tr,tf = 100 s TYP
• HIGH COLLECTOR TO EMITTER VOLTAGE VCEO: 300 V MIN
• ULTRA HIGH CURRENT TRANSFER RATIO CTR: 1000% MIN
• HIGH SPEED SWITCHING tr,tf = 100 s TYP
PS2633L Typical Application
• TELEPHONE/TELEGRAPH LINE RECEIVER
• POWER SUPPLY
• POWER SUPPLY

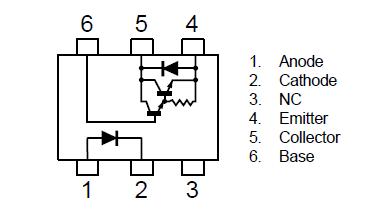

PS2633L Connection Diagram
PS2
