Position: Home  > All Categories> Integrated Circuits (ICs) > PTK15-Q24-S5

PTK15-Q24-S5

CONVERTER DC/DC 5V OUT 15 WATT

product image

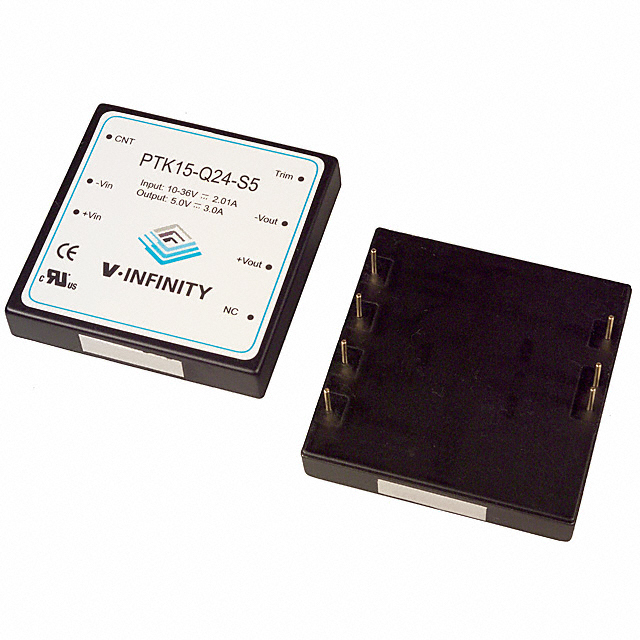

PTK15-Q24-S5 Picture
See larger image
SeekIC No. : 003623917 Detail

PTK15-Q24-S5: CONVERTER DC/DC 5V OUT 15 WATT

PTK15-Q24-S5 Data Sheet

floor Price/Ceiling Price

US $ 18.77~18.77 / Piece | Get Latest Price
Part Number:
PTK15-Q24-S5
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~504
  • Unit Price
  • $18.77
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/6

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: V-Infinity PTK15 Manufacturer: CUI Inc
Type: Isolated Number of DAC Outputs : 2
Number of Outputs: 1 Voltage - Input (Min): 10V
Voltage - Input (Max): 36V Voltage - Output 1: 5V
Voltage - Output 2: - Voltage - Output 3: -
Current - Output (Max): 3A Power (Watts) - Manufacture Series: 15W
Voltage - Isolation: 500V Features: -
Mounting Type: Through Hole Package / Case: 8-DIP Module (7 Leads)
Size / Dimension: 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) Packaging: -
Operating Temperature: -20°C ~ 71°C

Description

Manufacturer: CUI Inc
Type: Isolated
Number of Outputs: 1
Voltage - Output 1: 5V
Voltage - Output 2: -
Voltage - Output 3: -
Features: -
Mounting Type: Through Hole
Efficiency: 85%
Packaging: -
Power (Watts) - Manufacture Series: 15W
Current - Output (Max): 3A
Voltage - Input (Max): 36V
Voltage - Input (Min): 10V
Voltage - Isolation: 500V
Series: V-Infinity PTK15
Package / Case: 8-DIP Module (7 Leads)
Size / Dimension: 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm)
Operating Temperature: -20°C ~ 71°C


Parameters:

Technical/Catalog InformationPTK15-Q24-S5
VendorCUI Inc
CategoryPower Supplies
Voltage - Input10 ~ 36V
Output5V
Power (Watts)15W
Number of Outputs1
1st Output5 VDC @ 3A
2nd Output-
3rd Output-
4th Output-
TypeIsolated
Mounting TypeThrough Hole
Packaging-
Package / Case8-DIP
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names PTK15 Q24 S5
PTK15Q24S5
102 1077 ND
1021077ND
102-1077
