Part Number: R5328K
Description: The R5328K Series are dual 150mA voltage regulator ICs with 3-mode. The 3-mode describes that they are...
- Table of contents:
R5328K
-
Suppliers
DataSheet
General Description
R5328K General Description
The R5328K Series are dual 150mA voltage regulator ICs with 3-mode. The 3-mode describes that they are the inactive standby, the active fast mode, and the active low power mode. The two active modes can be switched over with ECO pin. With this function, the output voltage maintains the level, and the mode can be switched over.
The minimum operating voltage is 1.4V, and the output voltage range is from 0.8V to 4.0V. Since the package for these ICs is PLP2020-8, high density mounting of the ICs on boards is possible.
R5328K Maximum Ratings
| Symbol | Item | Rating | Unit |
| VIN VCE1,VCE2 VECO1,VECO2 VOUT1,VOUT2 IOUT1,IOUT2 PD Topt Tstg |
Input Voltage Input Voltage (CE/ECO Pin) Output Voltage Output Current Power Dissipation (PLP2020-8)*1 Operating Temperature Range Storage Temperature Range |
6.0 −0.3 to 6.5 −0.3 to VIN+0.3 160 880 −40 to +85 −55 to +125 |
V V V mA mW °C °C |
*1 ) For Power Dissipation, please refer to PACKAGE INFORMATION to be described.
R5328K Features
• Supply Current (Low Power Mode)...................Typ. 2.0A*2 (VR1&VR2) (VOUT<2.0V)
Typ. 2.5A*2 (VR1&VR2) (VOUT => 2.0V)
• Supply Current (Fast Mode)..............................Typ. 75A*2 (VR1&VR2) (VOUT<2.0V)
Typ. 65A*2 (VR1&VR2) (VOUT => 2.0V)
• Standby Mode ...................................................Typ. 0.1A (VR1&VR2)
• Input Voltage .....................................................1.4V to 6.0V
• Output Voltage ..................................................0.8V to 4.0V
• Dropout Voltage ................................................Typ. 0.25V (IOUT=150mA VOUT=2.8V)
• Ripple Rejection (Fast Mode) ...........................Typ. 70dB (f=1kHz, VOUT=2.8V)
Typ. 55dB (f=10kHz, VOUT=2.8V)
• Excellent Line Regulation .................................Typ. 0.02%/V (VOUT => 1.5V)
• Output Voltage Accuracy (Fast Mode) ..............±1.0%
• Output Voltage Accuracy (Low Power Mode) ...±1.5%
• Low Temperature-drift Coefficient of Output Voltage ....Typ. ±100ppm/°C
• Package ............................................................PLP2020-8
• Built-in fold-back protection circuit ....................Typ. 50mA (Current at short mode)
• Ceramic Capacitor is recommended. ..............1.0F
• Built-in chip enable circuit (A/B: active high)
(Depending on VIN and set VOUT. Refer to the electrical characteristics table.)
Typ. 2.5A*2 (VR1&VR2) (VOUT => 2.0V)
• Supply Current (Fast Mode)..............................Typ. 75A*2 (VR1&VR2) (VOUT<2.0V)
Typ. 65A*2 (VR1&VR2) (VOUT => 2.0V)
• Standby Mode ...................................................Typ. 0.1A (VR1&VR2)
• Input Voltage .....................................................1.4V to 6.0V
• Output Voltage ..................................................0.8V to 4.0V
• Dropout Voltage ................................................Typ. 0.25V (IOUT=150mA VOUT=2.8V)
• Ripple Rejection (Fast Mode) ...........................Typ. 70dB (f=1kHz, VOUT=2.8V)
Typ. 55dB (f=10kHz, VOUT=2.8V)
• Excellent Line Regulation .................................Typ. 0.02%/V (VOUT => 1.5V)
• Output Voltage Accuracy (Fast Mode) ..............±1.0%
• Output Voltage Accuracy (Low Power Mode) ...±1.5%
• Low Temperature-drift Coefficient of Output Voltage ....Typ. ±100ppm/°C
• Package ............................................................PLP2020-8
• Built-in fold-back protection circuit ....................Typ. 50mA (Current at short mode)
• Ceramic Capacitor is recommended. ..............1.0F
• Built-in chip enable circuit (A/B: active high)
(Depending on VIN and set VOUT. Refer to the electrical characteristics table.)
R5328K Typical Application
• Power source for handheld communication equipment.
• Power source for electrical appliances such as cameras, VCRs and camcorders.
• Power source for battery-powered equipment.
• Power source for electrical appliances such as cameras, VCRs and camcorders.
• Power source for battery-powered equipment.

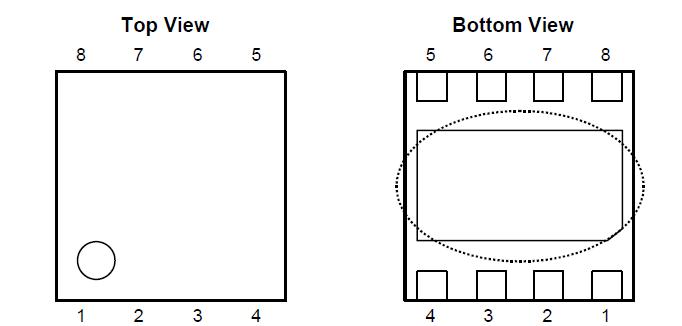

R5328K Connection Diagram
R5328K001A
