Product Details

Description



Features:

• Low Noise and High Intercept Point
• Power Down Control
• Single 2.5V to 6.0V Power Supply
• 150MHz to 2500MHz Operation
• Extremely Small MSOP-8 Package


Application

• TDMA/CDMA/FM Cellular LNA
• Low Noise Transmit Driver Amplifier
• General Purpose Amplification
• Commercial and Consumer Systems

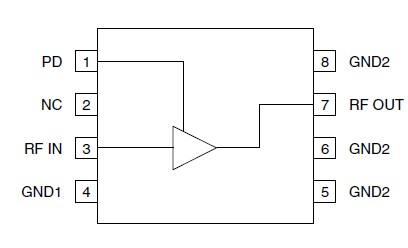

Pinout

Connection Diagram


Specifications

Parameter
Value
Unit
Supply Voltage
-0.5 to +8.0
VDC
Input RF Level
+10
dBm
Operating Ambient Temperature
-40 to +85
°C
Storage Temperature
-40 to +150
°C



Description

The RF2347 is a low noise amplifier with a very high dynamic range designed for digital cellular applications at 900MHz. RF2347 functions as an outstanding front end low noise amplifier or power amplifier driver amplifier in the transmit chain of digital subscriber units where low transmit noise power is a concern. When RF2347 used as an LNA, the bias current can be set externally. When used as a PA driver, the IC can operate directly from a single cell Li-ion battery and includes a power down feature that can be used to completely turn off the device. The RF2347 is featured in a standard miniature 8-lead plastic MSOP package.
