RF2619

Features: • Supports Dual Mode Operation• -48dB to +42dB Gain Control Range• Single 3V Power Supply• Monolithic Construction• 12MHz to 175MHz Operation• Miniature Surface Mount PackageApplication• 3V CDMA/FM Cellular Systems• Supports Dual-Mode AMPS/...

product image

RF2619 Picture
See larger image
SeekIC No. : 004476306 Detail

RF2619: Features: • Supports Dual Mode Operation• -48dB to +42dB Gain Control Range• Single 3V Power Supply• Monolithic Construction• 12MHz to 175MHz Operation• Miniature...

RF2619 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2619
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports Dual Mode Operation
• -48dB to +42dB Gain Control Range
• Single 3V Power Supply
• Monolithic Construction
• 12MHz to 175MHz Operation
• Miniature Surface Mount Package


Application

• 3V CDMA/FM Cellular Systems
• Supports Dual-Mode AMPS/CDMA
• Supports Dual-Mode TACS/CDMA
• General Purpose Linear IF Amplifier
• Portable Battery-Powered Equipment
• Commercial and Consumer Systems


Pinout

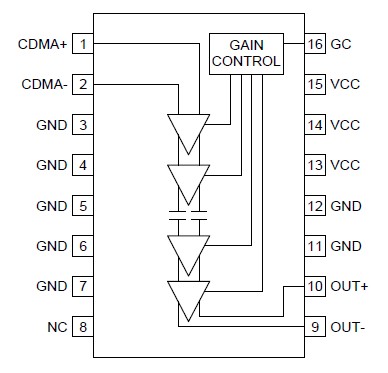

Connection Diagram


Specifications

Parameter
Value
Unit
Supply Voltage
-0.5 to +7.0
VDC
Control Voltage
-0.5 to +5.0
V
Input RF Power
+10
dBm
Operating Ambient Temperature
-40 to +85
°C
Storage Temperature
-40 to +150
°C



Description

The RF2619 is a complete AGC amplifier designed for the transmit section of 3V dual-mode CDMA/FM cellular applications. It is designed to amplify IF signals while providing more than 84dB of gain control range. Noise Figure, IP3, and other specifications are designed to be compatible with the IS-95 Interim Standard for CDMA cellular communications. This circuit RF2619 is designed as part of the RFMD CDMA Chip Set, consisting of this Transmit IF AGC Amp, a Transmit Upconverter, a Receive LNA/Mixer, and a Receive IF AGC Amp. The IC RF2619 is manufactured on an advanced high frequency Silicon Bipolar process and is packaged in a standard miniature 16-lead plastic SSOP package.
