RF2627

Features: • Supports PCS and Cellular Applications• -48dB to +48dB Gain Control Range• Single 3V Power Supply• -2dBm Input IP3• 12MHz to 285MHz Operation• Monolithic ConstructionApplication• 3V CDMA Cellular Systems• 3V CDMA PCS Systems• 3V TDM...

product image

RF2627 Picture
See larger image
SeekIC No. : 004476307 Detail

RF2627: Features: • Supports PCS and Cellular Applications• -48dB to +48dB Gain Control Range• Single 3V Power Supply• -2dBm Input IP3• 12MHz to 285MHz Operation• Monolit...

RF2627 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2627
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports PCS and Cellular Applications
• -48dB to +48dB Gain Control Range
• Single 3V Power Supply
• -2dBm Input IP3
• 12MHz to 285MHz Operation
• Monolithic Construction


Application

• 3V CDMA Cellular Systems
• 3V CDMA PCS Systems
• 3V TDMA Cellular/PCS Systems
• General Purpose Linear IF Amplifier
• Commercial and Consumer Systems
• Portable Battery Powered Equipment


Pinout

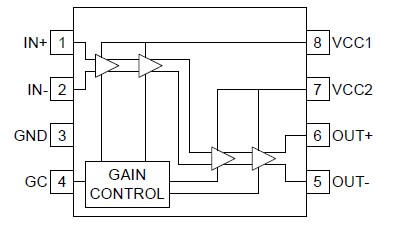

Connection Diagram


Specifications

Parameter
Value
Unit
Supply Voltage
-0.5 to +7.0
VDC
Control Voltage
-0.5 to +5.0
VDC
Input RF Power
+10
dBm
Operating Ambient Temperature
-40 to +85
°C
Storage Temperature
-40 to +150
°C



Description

The RF2627 is a complete AGC amplifier designed for the receive section of 3V CDMA cellular and PCS applications. RF2627 is designed to amplify IF signals while providing more than 90dB of gain control range. Noise Figure, IP3, and other specifications are designed for CDMA handsets. This circuit is designed as part of the RFMD CDMA Chip Set, consisting of a Transmit IF AGC Amp, a Transmit Upconverter, a Receive LNA/Mixer, and this Receive IF AGC Amp. The IC RF2627 is manufactured on an advanced high frequency Silicon Bipolar process, and is packaged in a standard miniature 8-lead plastic MSOP package.
