RF2629

Features: Supports Dual Mode OperationSupports PCS and Cellular Applications-48dB to +38dB Gain Control RangeSingle 3V Power Supply12MHz to 175MHz OperationMiniature Surface Mount PackageApplication3V CDMA/FM Cellular Systems3V CDMA PCS Systems3V TDMA Cellular/PCS SystemsSupports Dual-Mode AMPS/CD...

product image

RF2629 Picture
See larger image
SeekIC No. : 004476309 Detail

RF2629: Features: Supports Dual Mode OperationSupports PCS and Cellular Applications-48dB to +38dB Gain Control RangeSingle 3V Power Supply12MHz to 175MHz OperationMiniature Surface Mount PackageApplication...

RF2629 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2629
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Supports Dual Mode Operation
Supports PCS and Cellular Applications
-48dB to +38dB Gain Control Range
Single 3V Power Supply
12MHz to 175MHz Operation
Miniature Surface Mount Package


Application

3V CDMA/FM Cellular Systems
3V CDMA PCS Systems
3V TDMA Cellular/PCS Systems
Supports Dual-Mode AMPS/CDMA
Supports Dual-Mode TACS/CDMA
Portable Battery-Powered Equipment


Pinout

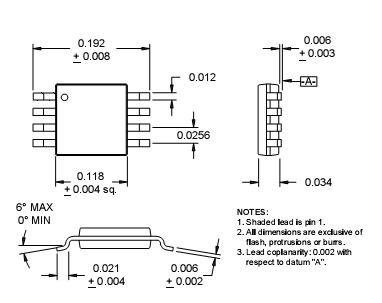

Connection Diagram


Specifications


Parameter

Rating

Unit

Supply Voltage
Control Voltage
Input Power Levels
Operating Ambient Temperature
Storage Temperature

-0.5 to +7.0
-0.5 to +5.0
+10
-40 to +85
-40 to +150

V
DC
V
dBm
°C
°C




Description

The RF2629 is a complete AGC amplifier designed for the transmit section of 3V dual-mode CDMA/FM cellular and PCS applications. RF2629 is designed to amplify IF signals while providing more than 84dB of gain control range. Noise Figure, IP3, and other specifications are designed for CDMA and dual mode CDMA/AMPS handsets. This circuit RF2629 is designed as part of the RFMD CDMA Chip Set, consisting of this Transmit IF AGC Amp, a Transmit Upconverter, a Receive LNA/Mixer, and a Receive IF AGC Amp. The IC is manufactured on an advanced high frequency Silicon Bipolar process and is packaged in a standard miniature 8-lead plastic MSOP package.
