Product Details

Description

Features:

• Supports Basestation Applications
• -55dB to +51dB Gain Control Range @ 85MHz
• Single 3V Power Supply
• -2dBm Input IP3
• 12MHz to 385MHz Operation

Application

• 3V Basestation Systems
• General Purpose Linear IF Amplifier
• Commercial and Consumer Systems
• Portable Battery-Powered Equipment

Pinout

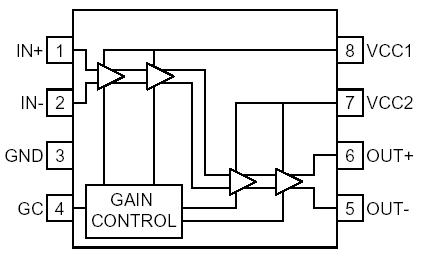

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage Control Voltage Input RF Power Operating Ambient Temperature Storage Temperature	-0.5 to +7.0 -0.5 to +5.0 +10 -40 to +85 -40 to +150	VDC VDC dBm °C °C

Frequency (MHz)

12 to 385

Gain Control Range (dB)

Vcc (V)

2.7 to 3.4

Icc (mA)

Package/Size (Dim in mm)

MSOP-8

Description

The RF2637 is a complete AGC amplifier designed for the receive section of 3V cellular and PCS applications basestations. RF2637 is designed to amplify IF signals while providing more than 90dB of gain control range. Noise Figure, IP3, and other specifications are designed for basestations. The IC RF2637 is manufactured on an advanced high frequency SiGe process, and is packaged in a standard miniature 8-lead plastic MSOP package.
