Product Details

Description



Features:

• Supports Dual Mode Operation
• +10dBm Output IP3 (1950MHz)
• +13dBm Output IP3 (830MHz)
• Single 3.0V Power Supply
• Miniature 8-Pin Package
• Double-Balanced Mixer


Application

• W-CDMA Systems
• PCS/Cellular CDMA Systems
• PHS 1500/WLAN 2400 Systems
• General Purpose Upconverter
• BPSK Modulation
• Micro-Cell PCS Base Stations


Pinout

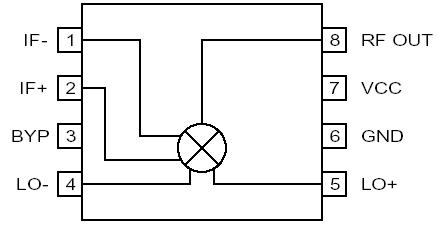

Connection Diagram


Specifications

Parameter
Rating
Unit
Supply Voltage

Input RF Power

Operating Ambient Temperature

Storage Temperature
-0.5 to +5.0

+3

-30 to +80

-30 to +150
VDC

dBm

°C

°C



Description

The RF2638 is a complete upconverter designed for cellular, PCS and W-CDMA applications. This device may also be used to directly BPSK modulate a carrier. The unit operates at 3.0V and is designed as part of the RFMD PCS/Cellular CDMA and W-CDMA Chip Sets.
