Features:

Supports Tri-Mode Operation
Digitally Controlled Power Down Modes
2.7V to 3.3V Operation
Digital First LO Quadrature Divider
Double-Balanced UHF Upconvert Mixer
IFAGCAmpwith95dBGainControl


Application

CDMA/FM Cellular and PCS Systems
Tri-Mode/Dual-Band CDMA Applications
W-CDMA Systems
Wireless Local Loop Systems
Spread-Spectrum Cordless Phones
High Speed Data Modems


Pinout

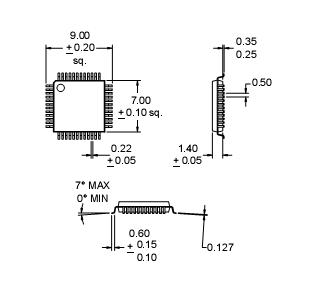

Connection Diagram


Specifications

Parameter

Rating

Unit

Supply Voltage
Power Down Voltage (VPD )
I and Q Levels, per pin
LO1 Level, balanced
Operating Ambient Temperature
Storage Temperature

-0.5 to +5
-0.5toVCC+0.7
1
+6
-40 to +85
-40 to +150

VDC
V
VPP
dBm
°C
°C




Description

The RF2668 is an integrated complete quadrature modu-lator, IF AGC amplifier, upconverter, and PLL, designed for the transmit section of dual-mode CDMA/FM cellular,PCS, and tri-mode CDMA applications. RF2668 is designed to modulate baseband I and Q signals, amplify the resulting IF signals while providing 95dB of gain control range, and perform the final upconversion to UHF. Noise Figure, IP3, and other specifications are designed to be compatible with the IS-98 Interim Standard. This circuit RF2668 is designed as part of RFMD's newest CDMA chipset, which also includes the RF2667 CDMA/FM Receive IF AGC and Demodulator. The IC is manufactured on an advanced 18GHz FT Silicon Bipolar process, and is supplied in a 48-lead plastic LQFP package.
