RF2681

Features: • 30dB Linear Gain Control Range• 26dBMaximumGain• Single 2.7V to 3.3V Supply• High Linearity Over Entire Gain Control Range• 9dBm Output Drive AvailableApplication• PA Driver Amplifier for W-CDMA Handsets • General Purpose Driver AmplifierPinout...

product image

RF2681 Picture
See larger image
SeekIC No. : 004476320 Detail

RF2681: Features: • 30dB Linear Gain Control Range• 26dBMaximumGain• Single 2.7V to 3.3V Supply• High Linearity Over Entire Gain Control Range• 9dBm Output Drive AvailableAppli...

RF2681 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RF2681
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 30dB Linear Gain Control Range
• 26dBMaximumGain
• Single 2.7V to 3.3V Supply
• High Linearity Over Entire Gain Control Range
• 9dBm Output Drive Available


Application

• PA Driver Amplifier for W-CDMA Handsets
• General Purpose Driver Amplifier

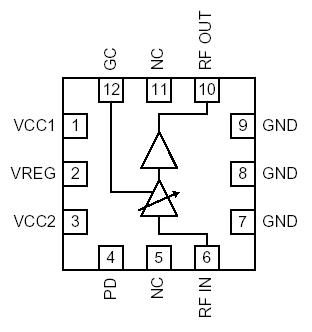

Pinout

Connection Diagram


Specifications

Parameter
Rating
Unit
Supply Voltage

Operating Ambient Temperature

Storage Temperature
-0.5 to +3.6

-40 to +85

-40 to +150
VDC

°C

°C



Description

The RF2681 is a linear variable gain amplifier specifically designed for PA driver applications in W-CDMA handsets. The RF2681device maintains excellent linearity over a 30dB gain control range, while providing a maximum of 26dB gain. The IC RF2681 is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor Process and is provided in an extremely small 3mmx3mm, 12-pin, leadless chip carrier.
