Features:

• Digitally Controlled Power Down Mode
• 2.7V to 3.3V Operation
• Digital LO Quadrature Divide-by-8
• IF AGC Amp with 70dB Gain Control
• 80dB Maximum Voltage Gain


Application

• Multimode W-CDMA/GSM/DCS/EDGE
• W-CDMA Systems
• GSM Systems


Pinout

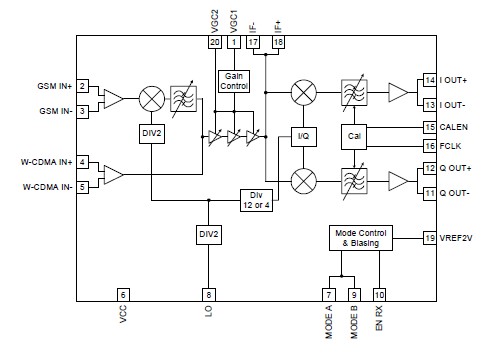

Connection Diagram


Specifications

Parameter
Value
Unit
Supply Voltage
-0.5 to +7.0
VDC
Control Voltage
-0.5 to VCC+0.7
VDC
Input RF Power
+3
dBm
Operating Ambient Temperature
-40 to +85
°C
Storage Temperature
-40 to +150
°C



Description

The RF2689 is an integrated complete IF AGC amplifier and quadrature demodulator designed for the receive section of W-CDMA and GSM/DCS applications. RF2689 is designed to amplify received IF signals, while providing 70dB of gain control range, a total of 90dB gain, and demodulate to baseband I and Q signals. This circuit is designed as part of RFMD's multimode W-CDMA/GSM/ DCS chipset, which also includes the RF2688 W-CDMA/ GSM/DCS transmit modulator and IF AGC/Upconverter. The IC RF2689 is manufactured on an advanced 25GHz FT Silicon Bi-CMOS process, and is packaged in a 20-pin, 4mmx4mm, leadless chip carrier.
