Product Details

Description

Features:

• Fully Monolithic Integrated Transceiver
• 2.7V to 5.0V Supply Voltage
• Narrow Band and Wide Band FM/FSK
• 300MHz to 1000MHz Frequency Range
• 10dB Cascaded Noise Figure
• 10mW Output Power at 433MHz

Application

• Wireless Meter Reading
• Keyless Entry Systems
• 433/868/915MHz ISM Band Systems
• Wireless Data Transceiver
• Wireless Security Systems
• Battery Powered Portable Devices

Pinout

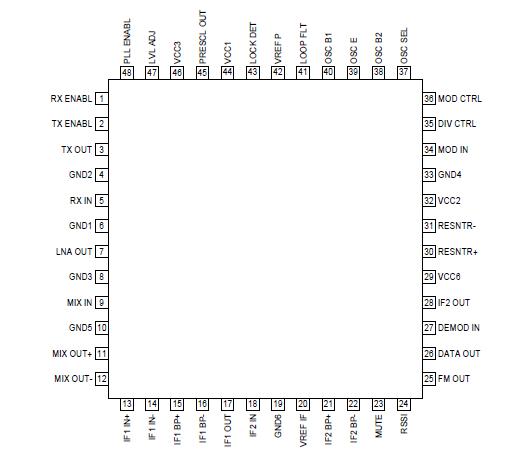

Connection Diagram

Specifications

Parameter	Rating	Unit
Supply Voltage	-0.5 to 5.5	V_DC
Control Voltages	-0.5 to +5.0	V_DC
Input LO and RF Levels	+10	dBm
Output Load VSWR	50:1
Operating Ambient Temperature	-40 to +85
Storage Temperature	-40 to +150

Description

The RF2905 is a monolithic integrated circuit intended for use as a low cost FM transceiver. The device is provided in 7mmx7mm, 48-lead plastic LQFP packaging and is designed to provide a fully functional FM transceiver. The chip is intended for linear (AM, FM) or digital (ASK, FSK, OOK) applications in the North American 915MHz ISM band and European 433MHz and 868MHz ISM bands. The integrated VCO, dual modulus/dual divide (128/129 or 64/65) prescaler, and reference oscillator require only the addition of an external crystal to provide a complete phase-locked oscillator.
