Features: • Single 2.9V to 4.7V Supply Voltage• +35.5dBm GSM Output Pwr at 3.5V• +33.0dBm DCS/PCS Output Pwr at 3.5V• 55% GSM and 50% DCS/PCS Efficiency• Supports GSM, E-GSM and DCS/PCS• 9mmx10mmPackage SizeApplication• 3V Dual-Band/Triple-Band GSM Handset...

product image

RF3108 Picture
SeekIC No. : 004476349 Detail

RF3108: Features: • Single 2.9V to 4.7V Supply Voltage• +35.5dBm GSM Output Pwr at 3.5V• +33.0dBm DCS/PCS Output Pwr at 3.5V• 55% GSM and 50% DCS/PCS Efficiency• Supports GSM, ...

floor Price/Ceiling Price

Part Number:
RF3108
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 2.9V to 4.7V Supply Voltage
• +35.5dBm GSM Output Pwr at 3.5V
• +33.0dBm DCS/PCS Output Pwr at 3.5V
• 55% GSM and 50% DCS/PCS Efficiency
• Supports GSM, E-GSM and DCS/PCS
• 9mmx10mmPackage Size





Application

• 3V Dual-Band/Triple-Band GSM Handsets
• Commercial and Consumer Systems
• Portable Battery-Powered Equipment
• GPRS Compatible





Pinout

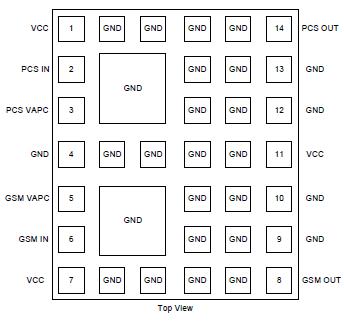

  Connection Diagram




Specifications

Parameter
Rating
Unit
Supply Voltage
-0.5 to +6.0
VDC
Power Control Voltage (VAPC1,2)
-0.5 to +3.0
V
DC Supply Current
2400
mA
Input RF Power
+13
dBm
Duty Cycle at Max Power
50
%
Output Load VSWR
8:1
Operating Ambient Temperature
-40 to +85
Storage Temperature
-40 to +150
Humidity
80
%
Maximum Power Dissipation
0.5
W
Maximum TJ
150


Frequency (MHz) 880 to 915
Gain (dB) 38 at 900
Vcc (V) 2.9 to 4.7
Package/Size (Dim in mm) 8x10mm Module





Description

The RF3108 is a high-power, high-efficiency power amplifier module offering high performance in GSM or GPRS applications. The device is self-contained with 50 input and output terminals. The device is manufactured on an advanced GaAs HBT process, and has been designed for use as the final RF amplifier in GSM/DCS and PCS hand held-digital cellular equipment and other applications in the 880MHz to 915MHz and 1710MHz to 1910MHz bands. On-board power control provides over 70dB of control range with an analog voltage input, and provides power down with a logic "low" for standby operation. The device is packaged in an ultra-small (9mmx10mm) LCC, minimizing the required board space.
